CLAUSING MAV26197 26" x 197"
Location:
McClellan Park, CA
Manufacturer:
Clausing lathes
Model:
MAV26197
Spindle Bore:
4.1"
Distance between Centers:
196"

Specifications

Condition:
new
Stock number:
8263
Bed type:
One Piece
Bed width:
18"
Headstock:
Variable Speed
Quill taper:
MT6
Quill travel:
8.25"
Spindle bore:
4.1"
Spindle nose:
A2-11
Swing in gap:
38.12"
Speed range 1:
14-45 rpm
Speed range 2:
60-180 rpm
Speed range 3:
306-1000 rpm
Spindle motor:
15 Hp
Machine height:
55.1"
Quill diameter:
4.125"
Shipping width:
65.3"
Swing over bed:
26.7"
Cross slide travel:
15.37"
Leadscrew diameter:
1.75"
Cross feeds (in/rev):
0.025 - 0.35
Compound slide travel:
9.5"
Movement of tailstock:
Manual
Range of inch threads:
2 - 28 TPI
Width of machine base:
48.8"
Center height over bed:
13.38"
Number of inch threads:
36
Swing over cross slide:
17.37"
Range of metric threads:
8 - 14 mm
Range of module threads:
0.5 - 7 Mod
Distance between centers:
196"
Number of metric threads:
65
Number of module threads:
22
Gap in front of faceplate:
19"
Longitudinal feeds (in/rev):
0.05 - 0.7
Range of diametral pitch threads:
4-56 DP
Min. spindle speed for full power:
45
Number of diametral pitch threads:
36
Subcategory:
Engine

Description

Model: MAV26197
Capacity:
Swing over bed: 26.7"
Swing over cross slide: 17.37"
Swing in Gap: 38.12"
Gap in front of faceplate: 19"
Distance between centers: 196"
Spindle:
Spindle nose: A2-11
Spindle Bore: 4.1"
Headstock: Variable Speed
Speed range 1: 14-45 rpm
Speed range 2: 60-180 rpm
Speed range 3: 306-1000 rpm
Spindle motor: 15 Hp
Min. spindle speed for full power: 45
Construction:
Bed type: One Piece
Bed width: 18"
Center height over bed: 13.38"
Cross slide travel: 15.37"
Compound slide travel: 9.5"
Leadscrew diameter: 1.75"
Feeds and Threads:
Longitudinal feeds (in/rev): 0.05 - 0.7
Cross feeds (in/rev): 0.025 - 0.35
Number of Inch threads: 36
Range of Inch threads: 2 - 28 TPI
Number of Metric threads: 65
Range of Metric threads: .8 - 14 mm
Number of Module threads: 22
Range of Module threads: 0.5 - 7 Mod
Number of Diametral Pitch threads: 36
Range of Diametral Pitch threads: 4-56 DP
Tailstock:
Quill diameter: 4.125"
Quill travel: 8.25"
Quill taper: MT6
Movement of tailstock: Manual
Space & Weight:
Machine height: 55.1"
Width of machine base: 48.8"
Shipping width: 65.3"
Machine overall length - 196" - (266")
Machine net weight lbs. - 196" - 13,889
Machine shipping weight lbs. - 196" - 15,433

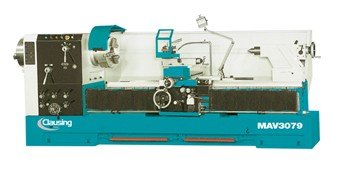

The Clausing MAV26 series large swing engine lathes are
engineered to allow the accurate and efficient machining of
large components. A wide range of optional accessories make
these machines suitable for most industrial applications,
including job shops, oil field, power utilities and ship
building.
FEATURES:
* Variable Spindle Speeds allows optimum cutting speed for a
wide range of machining applications. Speed range from 14 to
1000 rpm.
* Spindle Motor - 15Hp for exceptional machining power.
Optional 20Hp.
* All gears are made from chromium molybdenum steel treated
with cementation and precision ground for long-life and
dependability.
* One-piece cast iron bed from the ways to floor provides a
solid foundation to ensure maximum stability and rigidity
under heavy machining operations.
* 18" Bed Width, Hardened and Ground, support the saddle and
carriage assembly allowing superior positioning and
repeatability accuracy.
* Turcite `B' is fitted between saddle and bed to greatly
reduce friction and stick-slip for smooth operation and
superior surface finishes. The low friction Turcite also
minimizes bed wear and extends the life of the machine.
* Immersing Style Lead Screw reduces abrasion.
* 4-way Rapid Traverse for positioning and set up.
* 4-way Power Feed for longitudinal, cross and compound
feeds.
* Tailstock with 4.18" manual positioning for ease of setup
and operation.
* 4.1" Spindle Bore supported with taper spindle bearings
provides outstanding spindle performance and load carrying
capabilities. Optional spindle bores available.
* Coolant system for tool life and part cooling.
* Automatic lubrication system for all guideways.
* Guarding powder coated for durability.
* Emergency brake pedal for safe operation.
STANDARD EQUIPMENT:
* Hardened and grou
