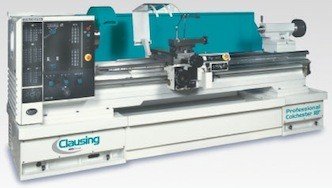

CLAUSING 8055VSJ 18" x 80"
Location:
McClellan Park, CA
Manufacturer:
Clausing lathes
Model:
8055VSJ
Spindle Bore:
3" (76mm)
Spindle Nose:
5MT

Specifications

Condition:
new
Stock number:
8237
(mm):
041-2.79mm/rev
(mm) 2:
02-1.4mm/rev
Quill taper:
6MT
Bedway width:
15.75" (400mm)
Quill travel:
7" (178mm)
Spindle bore:
3" (76mm)
Swing in gap:
28.74" (730mm)
Spindle motor:
15 hp (10kw)
Quill diameter:
3.74" (95mm)
Swing over bed:
18.1" (460mm)
Low range (rpm):
20-225
Mid range (rpm):
60-675
Height of center:
9" (229mm)
High range (rpm):
175-2000
Width of top side:
6.8" (173mm)
Spindle nose taper:
5MT
Travel of top slide:
7.5" (190mm)
Width of cross slide:
8" (203mm)
Cross feed range (in):
0.0008-0.055in/rev
Range of inch pitches:
2-84 TPI
Travel of cross slide:
11.81" (249mm)
Number of inch pitches:
73
Spindle nose (camlock):
D1-8
Swing over cross slide:
10.62" (216mm)
Range of metric pitches:
0.2-14mm
Range of module pitches:
0.2-3.5 MOD
Number of metric pitches:
51
Number of module pitches:
51
Number of spindle speeds:
3 infinitely variable
Spindle speed range (rpm):
20-2000
Range of diametral pitches:
8-72 DP
Number of diametral pitches:
27
Width in front of faceplate:
8.5" (216mm)
Longitudinal feed range (in):
0.0016-0.11in/rev
Subcategory:
Engine

Description

Model: 8055VSJ
Capacity:
Height of center: 9" (229mm)
Swing over bed: 18.1" (460mm)
Swing in gap: 28.74" (730mm)
Width in front of faceplate: 8.5" (216mm)
Swing over cross slide: 10.62" (216mm)
Bedway width: 15.75" (400mm)
Headstock:
Spindle bore: 3" (76mm)
Spindle nose (camlock): D1-8
Spindle nose taper: 5MT
Number of spindle speeds: 3 infinitely variable
Spindle Speed Range (rpm): 20-2000
Low range (rpm): 20-225
Mid range (rpm): 60-675
High range (rpm): 175-2000
Cross/Top Slide:
Travel of cross slide: 11.81" (249mm)
Width of cross slide: 8" (203mm)
Travel of top slide: 7.5" (190mm)
Width of top side: 6.8" (173mm)
Tailstock:
Quill travel: 7" (178mm)
Quill Diameter: 3.74" (95mm)
Quill taper: 6MT
Feeds and Threading:
Longitudinal feed range (in): 0.0016-0.11in/rev
(mm): .041-2.79mm/rev
Cross feed range (in): 0.0008-0.055in/rev
(mm): .02-1.4mm/rev
Number of inch pitches: 73
Range of inch pitches: 2-84 TPI
Number of metric pitches: 51
Range of metric pitches: 0.2-14mm
Number of diametral pitches: 27
Range of diametral pitches: 8-72 DP
Number of module pitches: 51
Range of module pitches: 0.2-3.5 MOD
Motor
Spindle motor: 15 hp (10kw)
FEATURES:
* State-of-the-art AC Spindle Drive features surface mount
technology to give compact size and high reliability
* Interlocked end guard door for easy access for
maintenance and changing end train gears
* Faster thread cutting - Reversal of the Leadscrew with
the spindle running at low speed
* An easy-to-read index plate makes it simple to select
the proper feed or threads
* Three headstock gear ranges a wide spread of constant
power - 33 to 1 - better than most CNC lathes
* Infinitely variable spindle speeds displayed on
headstock
* Electromagnetic spindle brake
* Spindle bearings, gears and shafts are lubricated by a
forced lubricationsystem
* Precision Gamet tapered roller spindle bearings
* Chuck guard with limit switch
* Carriage ways coated with "Moglice" PTFE for minimal
bedwear and longer machine life
* Saddle Mounted Chip Guard and Full Rear Splash Guard
* Extra Wide Heavy-duty Cast Iron Bed with triangular webs
for torsional stiffness and excellent chip clearance
* 2 axis rapid traverse available from one lever mounted
on saddle
* Heavy duty tailstock with extra heavy-duty quill
* Single piece leadscrew cover protects leadscrew from
chips
* Large capacity rollout chip bin for easy chip disposal
* All bedways are induction hardened and precision ground
* Heavyweight cast iron bases provide the maximum support
for the bed combined with sloping top surfaces to prevent
the accumulation of coolant
