Top Seller

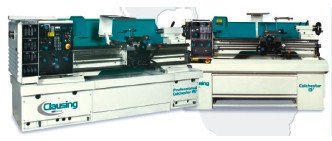

CLAUSING 8043 15" x 50"
Location:
McClellan Park, CA
Manufacturer:
Clausing lathes
Model:
8043
Spindle Bore:
2.12"
Spindle Nose:
4MT

Specifications

Condition:
new
Stock number:
8245
Weight:
3,300 lbs
Quill taper:
5MT
Bedway width:
12.5"
Quill travel:
5.5"
Spindle bore:
2.12"
Swing in gap:
23"
Spindle motor:
7.5 hp
Quill diameter:
2.8"
Swing over bed:
15.75"
Height of center:
7.68"
Spindle nose taper:
4MT
Width of top slide:
3.93"
Travel of top slide:
5.1"
Width of cross slide:
7.09"
Range of inch pitches:
2-56 TPI
Travel of cross slide:
9.8"
Number of inch pitches:
56
Spindle nose (camlock):
D1-6
Swing over cross slide:
9.7"
Length x height x width:
99" x 51" x 44"
Longitudinal feed range:
0.014"-0.096"in/rev
Range of metric pitches:
0.2-14mm
Range of module pitches:
0.2-3.5 MOD
Swing & center distance:
15" x 50" G/H Gap
Number of metric pitches:
51
Number of module pitches:
20
Number of spindle speeds:
16
Spindle speed range (rpm):
25-2000
Range of diametral pitches:
8-56 DP
Number of diametral pitches:
20
Width in front of faceplate:
6.5"
Subcategory:
Engine

Description

Model: 8043
Capacity:
Height of center: 7.68"
Swing over bed: 15.75"
Swing in gap: 23"
Width in front of faceplate: 6.5"
Swing over cross slide: 9.7"
Bedway width: 12.5"
Headstock:
Spindle bore: 2.12"
Spindle nose (camlock): D1-6
Spindle nose taper: 4MT
Number of spindle speeds: 16
Spindle Speed Range (rpm): 25-2000
Cross/Top Slide:
Travel of cross slide: 9.8"
Width of cross slide: 7.09"
Travel of top slide: 5.1"
Width of top slide: 3.93"
Tailstock:
Quill travel: 5.5"
Quill diameter: 2.8"
Quill taper: 5MT
Feeds & Threading:
Longitudinal feed range: 0.014"-0.096"in/rev
Number of inch pitches: 56
Range of inch pitches: 2-56 TPI
Number of metric pitches: 51
Range of metric pitches: 0.2-14mm
Number of diametral pitches: 20
Feeds & Threading Cont.:
Range of diametral pitches: 8-56 DP
Number of module pitches: 20
Range of module pitches: 0.2-3.5 MOD
Motor:
Spindle motor: 7.5 hp
Dimensions:
Swing & Center Distance: 15" x 50" G/H Gap
Length x Height x Width: 99" x 51" x 44"
Weight: 3,300 lbs.
FEATURES:
* All headstock gears are hardened and ground
* Spindle bearing, gears and shafts are lubricated by a
forced lubrication system
* An easy-to-read index plate makes it simple to select the
proper feed rate or thread
* The apron has hardened and ground gears and are lubricated
in a bath of oil
* Extra wide bed provides accuracy and minimal wear
* Easy access pull-out rolling chip bin
* Precision Gamet tapered roller spindle bearings
* Equipped with chuck guard, full splash guard and leadscrew
cover
* Clutch drive, reverse leadscrew with spindle turning for
faster thread cutting
* Clutches are operated by levers at apron and headstock for
forward/reverse
* A one year warranty and back by the Clausing Service
Center dedicated to support our customers with parts and
service
STANDARD EQUIPMENT:
* Chuck Guard Accuracy Chart
* Covered leadscrew
* Electric Coolant Pump, tank and fittings
* Emergency stop button
* End guard limit switch
* Forward/Reverse/Stop switch
* Lockable isolator switch
* Splash Guard
* Tee slotted top slide
* One shot sattle and cross side lubrication
* Pullout chip bin
* Thread indicator
* Tool box with wrenches and dead centers
* Instruction and spare parts manual
* 208/230 or 460 volts phase 60 Hz
