Top Seller

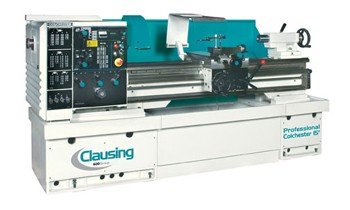

CLAUSING 8044VSJ 15" x 50"
Location:
McClellan Park, CA
Manufacturer:
Clausing lathes
Model:
8044VSJ
Spindle Bore:
2.12" (54mm)
Spindle Nose:
4MT

Specifications

Condition:
new
Stock number:
8235
(mm):
46-30mm/rev
(mm) 2:
018-1.22mm/rev
Quill taper:
5MT
Bedway width:
12.5" (318mm)
Quill travel:
5.5" (140mm)
Spindle bore:
2.12" (54mm)
Swing in gap:
23" (584mm)
Spindle motor:
10 hp (7.5kw)
Quill diameter:
2.87" (73mm)
Swing over bed:
15.75" (400mm)
Low range (rpm):
14-275
Mid range (rpm):
45-795
Height of center:
7.67" (195mm)
High range (rpm):
125-2500
Width of top side:
3.93" (100mm)
Spindle nose taper:
4MT
Travel of top slide:
5.1" (130mm)
Width of cross slide:
7.09" (180mm)
Cross feed range (in):
0.0007-0.048in/rev
Range of inch pitches:
0.2-56 TPI
Travel of cross slide:
9.8" (249mm)
Number of inch pitches:
56
Spindle nose (camlock):
D1-6
Swing over cross slide:
9.75" (248mm)
Range of metric pitches:
0.2-14mm
Range of module pitches:
0.2-3.5 MOD
Number of metric pitches:
51
Number of module pitches:
51
Number of spindle speeds:
3 infinitely variable
Spindle speed range (rpm):
14-2500
Range of diametral pitches:
8-56 DP
Number of diametral pitches:
20
Width in front of faceplate:
6.5" (165mm)
Longitudinal feed range (in):
0.018-1.2in/rev
Subcategory:
Engine

Description

Model: 8044VSJ
Capacity:
Height of center: 7.67" (195mm)
Swing over bed: 15.75" (400mm)
Swing in gap: 23" (584mm)
Width in front of faceplate: 6.5" (165mm)
Swing over cross slide: 9.75" (248mm)
Bedway width: 12.5" (318mm)
Headstock:
Spindle bore: 2.12" (54mm)
Spindle nose (camlock): D1-6
Spindle nose taper: 4MT
Number of spindle speeds: 3 infinitely variable
Spindle Speed Range (rpm): 14-2500
Low range (rpm): 14-275
Mid range (rpm): 45-795
High range (rpm): 125-2500
Cross/Top Slide:
Travel of cross slide: 9.8" (249mm)
Width of cross slide: 7.09" (180mm)
Travel of top slide: 5.1" (130mm)
Width of top side: 3.93" (100mm)
Tailstock:
Quill travel: 5.5" (140mm)
Quill Diameter: 2.87" (73mm)
Quill taper: 5MT
Feeds and Threading:
Longitudinal feed range (in): 0.018-1.2in/rev
(mm): .46-30mm/rev
Cross feed range (in): 0.0007-0.048in/rev
(mm): .018-1.22mm/rev
Number of inch pitches: 56
Range of inch pitches: 0.2-56 TPI
Number of metric pitches: 51
Range of metric pitches: 0.2-14mm
Number of diametral pitches: 20
Range of diametral pitches: 8-56 DP
Number of module pitches: 51
Range of module pitches: 0.2-3.5 MOD
Motor:
Spindle motor: 10 hp (7.5kw)
FEATURES:
* State-of-the-art AC Spindle Drive features surface mount
technology to give compact size and high reliability
* Interlocked end guard door for easy access for
maintenance and changing end train gears
* Faster thread cutting - Reversal of the Leadscrew with
the spindle running at low speed
* An easy-to-read index plate, makes it simple to select
the proper feed or threads
* Three headstock gear ranges a wide spread of constant
power - 33 to 1 - better than most CNC lathes
* Infinitely variable spindle speeds displayed on
headstock
* Electromagnetic spindle brake
* Spindle bearings, gears and shafts are lubricated by a
forced lubrication system
* Precision Gamet tapered roller spindle bearings
* Chuck guard with limit switch
* Carriage ways coated with "Moglice" PTFE for minimal
bedwear and longer machine life
* Saddle Mounted Chip Guard and Full Rear Splash Guard
* Extra Wide Heavy-duty Cast Iron Bed with triangular webs
for torsional stiffness and excellent chip clearance
* Heavy Duty Tailstock with extra heavy-duty quill
* Single piece leadscrew cover protects leadscrew from
chips
* Large capacity rollout chip bin for easy chip disposal
* All bedways are induction hardened and precision ground
* Heavyweight cast iron bases provide the maximum support
for the bed combined with sloping top surfaces to prevent
the accumulation of coolant
