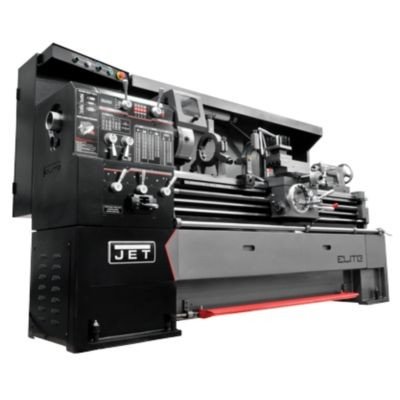

ELITE EGH-1760 17" x 60"
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
EGH-1760
Spindle Bore:
3-1/8
Distance between Centers:
60

Specifications

Condition:
new
Stock number:
8148
Motor (hp):
7-1/2HP, 230/460V, 3 Ph Prewired 230V CSA/UL
Stock number:
892550
Spindle mount:
D1-6
Weight (lbs.):
4,078
Coolant pump motor:
1/8 HP
Spindle bore (in.):
3-1/8
Width of bed (in.):
12
Length of gap (in.):
7-2/3
Max tool size (in.):
1 x 1
Swing over bed (in.):
17
Number of inch threads:
45
Range of metric threads:
0.2 - 14
Swing through gap (in.):
24-1/2
Cross slide travel (in.):
9-1/4
Number of metric threads:
39
Number of spindle speeds:
12
Spindle taper with sleeve:
MT-5
Follow rest capacity (in.):
1/2 - 3
Range of cross feeds (ipr):
0.00075 - 0.02
Steady rest capacity (in.):
3/8 - 6-3/4
Taper in tailstock spindle:
MT-4
Compound slide travel (in.):
6-2/7
Range of inch threads (tpi):
2 - 72
Swing over cross slide (in.):
11
Range of spindle speeds (rpm):
36-1800
Distance between centers (in.):
60
Range of modular pitch threads:
0.3 - 3.5
Tailstock spindle travel (in.):
5
Number of modular pitch threads:
18
Range of diametrial pitch threads:
8 - 44
Range of longitudinal feeds (ipr):
0.0015 - 0.04
Number of diametrial pitch threads:
21
Subcategory:
Engine

Description

Model: EGH-1760
Stock Number: 892550
Swing Over Bed (In.): 17
Swing Over Cross Slide (In.): 11
Swing Through Gap (In.): 24-1/2
Length of Gap (In.): 7-2/3
Distance Between Centers (In.): 60
Spindle Bore (In.): 3-1/8
Spindle Mount: D1-6
Spindle Taper with Sleeve: MT-5
Number of Spindle Speeds: 12
Range of Spindle Speeds (RPM): 36-1800
Range of Longitudinal Feeds (IPR): 0.0015 - 0.04
Range of Cross Feeds (IPR): 0.00075 - 0.02
Number of Inch Threads: 45
Range of Inch Threads (TPI): 2 - 72
Number of Metric Threads: 39
Range of Metric Threads: 0.2 - 14
Number of Diametrial Pitch Threads: 21
Range of Diametrial Pitch Threads: 8 - 44
Number of Modular Pitch Threads: 18
Range of Modular Pitch Threads: 0.3 - 3.5
Max Tool Size (In.): 1 x 1
Compound Slide Travel (In.): 6-2/7
Cross Slide Travel (In.): 9-1/4
Tailstock Spindle Travel (In.): 5
Taper in Tailstock Spindle: MT-4
Follow Rest Capacity (In.): 1/2 - 3
Steady Rest Capacity (In.): 3/8 - 6-3/4
Width of Bed (In.): 12
Motor (HP): 7-1/2HP, 230/460V, 3 Ph Prewired 230V CSA/UL
Certified
Coolant Pump Motor: 1/8 HP
Weight (Lbs.): 4,078
Overall Dimensions (L x W x H) (In.): 114 x 44 x 68
FEATURES:
* Fully lit with CNC-style lighting, the enclosed full
length splash guard is expertly designed to contain all
chips and coolant.
* Class 7 precision taper roller bearings keep spindle run
out to a maximum of 0.0004"
* Hardened and ground gears in headstock reduce vibration
and deflection
* Wider bedway absorbs vibration
* Turcite-B coating between bed and carriage provides
friction free motion in all linear directions
* Anti-float design eliminates backlash in the cross slide
* One-Shot lubrication in carriage reduces maintenance
* Overload cluth at feed shaft prevents the carriage from
crashing into the chuck
* Hardened and ground bedways provide accurate longitudinal
movements
* Shear pin in the lead screw disengages the feed when
overloaded, preventing damage to the apron and headstock
* Certified Meehanite castings retain their tolerances and
remain rigid through many years of machining
* Following strict guidelines, CSA/UL electrics have been
added for increased safety
STANDARD EQUIPMENT:
* 10" 3-Jaw chuck
* Backplate for 10" Chuck
* Steady rest- ball bearing
* Follow rest
* 4-Way tool post
* 4-Position carriage stop
* Chuck guard
* Micro-Carriage bed stop
3- YEAR FACTORY WARRANTY INCLUDED!!
