Top Seller

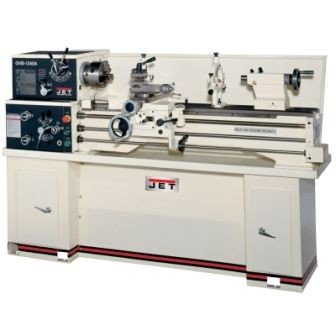

JET BDB-1340A 13" x 40"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
BDB-1340A
Spindle Bore:
1-3/8
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
7894
Motor:
2 HP, 1Ph, 230V
Width:
29.75 inch
Height:
29 inch
Length:
75.5 inch
Prewired:
230V
Net weight:
1175 pound
Stock number:
321360A
Spindle mount:
D1-4
Overall dimensions:
71 x 32 x 45 with stand
Spindle bore (in.):
1-3/8
Width of bed (in.):
7-3/8
Length of gap (in.):
8
Max tool size (in.):
5/8 x 5/8
Swing over bed (in.):
13
Carriage travel (in.):
35
Number of inch threads:
40
Range of metric threads:
0.2-6
Spindle taper w/ sleeve:
MT-5 (MT-3)
Swing through gap (in.):
18-3/4
Cross slide travel (in.):
6-5/16
Number of metric threads:
27
Number of spindle speeds:
12
Follow rest capacity (in.):
2-3/4
Range of cross feeds (ipr):
0012 -.0345
Steady rest capacity (in.):
2-5/8
Taper in tailstock spindle:
MT-3
Compound slide travel (in.):
2-11/16
Range of inch threads (tpi):
4-112
Swing over cross slide (in.):
7-25/32
Range of spindle speeds (rpm):
60-1,240
Distance between centers (in.):
40
Tailstock spindle travel (in.):
3-3/4
Range of longitudinal feeds (ipr):
0018 - .0374
Subcategory:
Engine

Description

Model: BDB-1340A
Stock Number: 321360A
Swing over Bed (in.): 13
Swing over Cross Slide (in.): 7-25/32
Swing Through Gap (in.): 18-3/4
Length of Gap (in.): 8
Distance Between Centers (in.): 40
Spindle Bore (in.): 1-3/8
Spindle Mount: D1-4
Spindle Taper W/ Sleeve: MT-5 (MT-3)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 60-1,240
Number of Longitudinal and Cross Feed Rates: 40
Range of Longitudinal Feeds (IPR): .0018 - .0374
Range of Cross Feeds (IPR): .0012 -.0345
Number of Inch Threads: 40
Range of Inch Threads (TPI): 4-112
Number of Metric Threads: 27
Range of Metric Threads: 0.2-6
Max Tool Size (in.): 5/8 x 5/8
Compound Slide Travel (in.): 2-11/16
Cross Slide Travel (in.): 6-5/16
Carriage Travel (in.): 35
Tailstock Spindle Travel (in.): 3-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in.): 2-5/8
Follow Rest Capacity (in.): 2-3/4
Width of Bed (in.): 7-3/8
Motor: 2 HP, 1Ph, 230V
Prewired: 230V
Overall Dimensions: 71 x 32 x 45 with stand
Height: 29 inch
Width: 29.75 inch
Length: 75.5 inch
Net Weight: 1175 pound
FEATURES:
* 13"X40" BELT DRIVE BENCH LATHE
* One of the most popular JET lathes now comes with an
enclosed gearbox as a standard feature
* Enclosed gearbox design provides smooth, quiet operation
* Fast, easy speed changes
* Low voltage motor controls
* Helical cut headstock gears reduce noise
* Changes gears alllow metric threading
* Spindle is supported by precision tapered roller
bearings
* V-way bed is induction hardened and ground
* Gap bed section provided for large diameter work
* Independent leadscrew and feed rod
* T-slotted compound slide with four-way tool post
* Carriage mounted spindle control lever
* Automatic feeding and threading are fully interlocked
* Feed selectors travel in grooved ways
* Tailstock may be offset for turning tapers and includes
an inch/metric graduated quill
STANDARD EQUIPMENT:
* Coolant tray
* Oil pan included
* Tolerance test certificate included
* 6" 3-jaw direct mount scroll chuck with top reversing
jaws
* 8" 4-jaw independent chuck
* 12" faceplate
* Four-way tool post
* Steady and follow rest
* Metric change gear
* Centers with headstock center sleeve
* Threading dial
* Tool box with tools
* Full Length Splash Guard
* Micro Carriage Bed Stop
2-YEAR FACTORY WARRANTY INCLUDED!!
