Top Seller

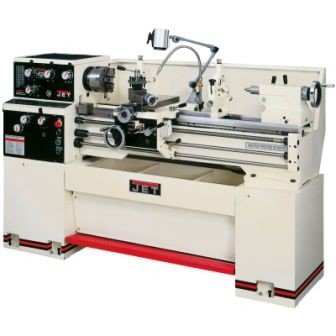

JET GH-1340W-1 13" x 40"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
GH-1340W-1
Spindle Bore:
1-1/2
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
7889
Motor:
3HP, 1Ph, 230V
Width:
37 inch
Height:
57 inch
Length:
77 inch
Feature:
Threading dial
Prewired:
230V
Feature 2:
Tool Box and tools
Net weight:
2081 pound
Stock number:
321810
Spindle mount:
D1-4
Overall dimensions:
73-3/4 x 29-1/2 x 46-3/4
Spindle bore (in.):
1-1/2
Width of bed (in.):
10-1/2
Length of gap (in.):
9-3/8
Max tool size (in.):
5/8 x 5/8
Swing over bed (in.):
13
Carriage travel (in.):
37-1/2
Number of inch threads:
40
Range of metric threads:
0.45 - 7.5
Spindle taper w/ sleeve:
MT-5 (MT-3)
Swing through gap (in.):
19
Cross slide travel (in.):
6-3/8
Number of metric threads:
22
Number of spindle speeds:
12
Follow rest capacity (in.):
2-3/4
Range of cross feeds (ipr):
0.0003 - 0.0103
Steady rest capacity (in.):
3-1/2
Taper in tailstock spindle:
MT-3
Compound slide travel (in.):
3-1/2
Range of inch threads (tpi):
4 - 112
Swing over cross slide (in.):
7-1/4
Range of spindle speeds (rpm):
40 - 1,800
Distance between centers (in.):
40
Tailstock spindle travel (in.):
4-3/4
Range of longitudinal feeds (ipr):
0.0011 - 0.0271
Subcategory:
Engine

Description

Model: GH-1340W-1
Stock Number: 321810
Swing over Bed (in.): 13
Swing over Cross Slide (in.): 7-1/4
Swing Through Gap (in.): 19
Length of Gap (in.): 9-3/8
Distance Between Centers (in.): 40
Spindle Bore (in.): 1-1/2
Spindle Mount: D1-4
Spindle Taper W/ Sleeve: MT-5 (MT-3)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 40 - 1,800
Number of Longitudinal and Cross Feed Rates: 40
Range of Longitudinal Feeds (IPR): 0.0011 - 0.0271
Range of Cross Feeds (IPR): 0.0003 - 0.0103
Number of Inch Threads: 40
Range of Inch Threads (TPI): 4 - 112
Number of Metric Threads: 22
Range of Metric Threads: 0.45 - 7.5
Max Tool Size (in.): 5/8 x 5/8
Compound Slide Travel (in.): 3-1/2
Cross Slide Travel (in.): 6-3/8
Carriage Travel (in.): 37-1/2
Tailstock Spindle Travel (in.): 4-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in.): 3-1/2
Follow Rest Capacity (in.): 2-3/4
Width of Bed (in.): 10-1/2
Motor: 3HP, 1Ph, 230V
Prewired: 230V
Feature: Threading dial
Feature: Tool Box and tools
Overall Dimensions: 73-3/4 x 29-1/2 x 46-3/4
Height: 57 inch
Width: 37 inch
Length: 77 inch
Net Weight: 2081 pound
FEATURES:
* 13" x 40" & 14" x 40" GEARED HEAD ENGINE LATHES
* Uniquely designed exclusively by JET
* Hardened and ground gears are featured in the headstock
and gearbox
* D1-4 spindle is precision ground for accuracy and
supported by high-quality tapered roller bearings
* Headstock is constantly oiled during operation
* Splined, not keyed, shafts are utilized in the headstock
* Gearbox gives large threading and feed capabilities with
no gear changes
* V-way bed design is induction hardened and ground
* Gap bed section provided for larger diameter work
* Independent leadscrew and feed rod
* Spindle actuation control is apron mounted
* Inch-metric dials are standard
* Compound and cross slide have backlash elimination
* Adjustable gibs are incorporated in the carriage and
slideways
* Tailstock may be offset for turning tapers and includes
an inch-metric graduated quill
* Tolerance test certificate included
STANDARD EQUIPMENT:
* Heavy-duty Stand
* 6" 3-jaw direct mount scroll chuck with top reversing
jaws
* 8" 4-jaw independent chuck
* 12" face plate
* Four-way tool post
* Steady and follow rest
* Micro-carriage bed stop
* Front removable chip tray
* Spindle jog button
* Foot brake
* Coolant system with splash guard
* Metric change gears
* Halogen work lamp
* Centers and headstock center sleeve
2-YEAR FACTORY WARRANTY INCLUDED!!
