Top Seller

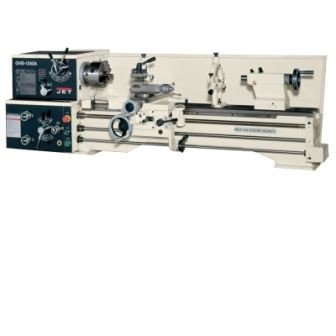

JET GHB-1340A 13" x 40"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
GHB-1340A
Spindle Bore:
1-3/8
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
5209
Motor:
2 HP, 1Ph, 230V
Width:
30 inch
Height:
28.5 inch
Length:
79 inch
Prewired:
230V
Net weight:
1154 pound
Stock number:
321357A
Spindle mount:
D1-4
Overall dimensions:
71 x 32 x 47
Spindle bore (in.):
1-3/8
Width of bed (in.):
7-3/8
Length of gap (in.):
8
Max tool size (in.):
5/8 x 5/8
Swing over bed (in.):
13
Carriage travel (in.):
35
Number of inch threads:
38
Range of metric threads:
0.45 - 10
Spindle taper w/ sleeve:
MT-5 (MT-3)
Swing through gap (in.):
18-3/4
Cross slide travel (in.):
6-5/16
Number of metric threads:
23
Number of spindle speeds:
8
Follow rest capacity (in.):
2-3/8
Range of cross feeds (ipr):
0.0006 - 0.0130
Steady rest capacity (in.):
2-3/4
Taper in tailstock spindle:
MT-3
Compound slide travel (in.):
2-11/16
Range of inch threads (tpi):
3-1/2 - 80
Swing over cross slide (in.):
7-25/32
Range of spindle speeds (rpm):
70 - 2,000
Distance between centers (in.):
40
Tailstock spindle travel (in.):
3-3/4
Range of longitudinal feeds (ipr):
0.0018 - 0.0374
Subcategory:
Engine

Description

Model: GHB-1340
Stock Number: 321357A
Swing over Bed (in.): 13
Swing over Cross Slide (in.): 7-25/32
Swing Through Gap (in.): 18-3/4
Length of Gap (in.): 8
Distance Between Centers (in.): 40
Spindle Bore (in.): 1-3/8
Spindle Mount: D1-4
Spindle Taper W/ Sleeve: MT-5 (MT-3)
Number of Spindle speeds: 8
Range of Spindle Speeds (RPM): 70 - 2,000
Number of Longitudinal and Cross Feed Rates: 40
Range of Longitudinal Feeds (IPR): 0.0018 - 0.0374
Range of Cross Feeds (IPR): 0.0006 - 0.0130
Number of Inch Threads: 38
Range of Inch Threads (TPI): 3-1/2 - 80
Number of Metric Threads: 23
Range of Metric Threads: 0.45 - 10
Max Tool Size (in.): 5/8 x 5/8
Compound Slide Travel (in.): 2-11/16
Cross Slide Travel (in.): 6-5/16
Carriage Travel (in.): 35
Tailstock Spindle Travel (in.): 3-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in.): 2-3/4
Follow Rest Capacity (in.): 2-3/8
Width of Bed (in.): 7-3/8
Motor: 2 HP, 1Ph, 230V
Prewired: 230V
Overall Dimensions: 71 x 32 x 47
Height: 28.5 inch
Width: 30 inch
Length: 79 inch
Net Weight: 1154 pound
This JET GHB-1340A Lathe comes equipped with a 2 HP, 1 Ph
motor, allowing it to turn metal more power and accuracy. As
one of the most popular of JET lathes, the GHB-1340A has a
V-way bed design that is induction hardened and ground. The
gap bed section provides for larger diameter work and the
D1-4 spindle is precision ground for accuracy and supported
by high quality tapered roller bearings.
FEATURES:
* One of the most popular JET lathes now comes with an
enclosed gearbox as a standard feature
* Enclosed gearbox design provides smooth, quiet operation
* Fast, easy speed changes
* Hardened and ground gears are featured in the headstock
and gearbox
* D1-4 spindle is precision ground for accuracy and
supperted by high quality tapered roller bearings
* Headstock is constantly oiled during operation
* Gear box gives wide inch threading and feed capabilities
with no gear changes
* V-way bed is induction hardened and ground
* Gap bed section provided for large diameter work
* Independent leadscrew and feed rod
* Spindle actuation control is apronmounted
* Compound and cross slide have backlash elimination
* Adjustable gibs are incorporated in the carriage and
slideways
* Tailstock may be offset for turning tapers and includes
an inch/metric graduated quill
STANDARD EQUIPMENT:
* Coolant tray
* Oil pan included
* Tolerance test certificate included
* 6" 3-jaw direct mount scroll chuck with top reversing
jaws
* 8" 4-jaw independent chuck
* 12" faceplate
* Four-way tool post
* Steady and follow rest
* Metric change gear
* Centers with headstock center sleeve
* Threading dial
* Tool box with tools
* Splash guard
* Micro Carriage Bed Stop
2-YEAR FACTORY WARRANTY INCLUDED!!
