Top Seller

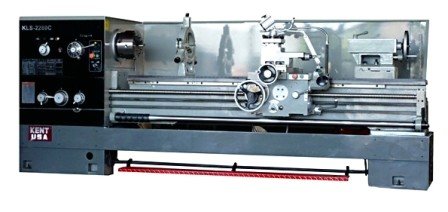

KENT KLS2280C 22" x 80"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
KLS2280C
Distance between Centers:
80" (2000 mm)
Spindle Nose:
D1-8 camlock

Specifications

Condition:
new
Stock number:
3057
Diametral:
24 (4 to 56) DP
Main motor:
10 HP (3-phase)
Net weight:
8580 lbs
Cross feeds:
0.0011"-0.042" IN/REV
Module (mm):
18 (0.5 to 7) MM
Please note:
All prices, features, and specifications
Gross weight:
8800 lbs
Metric pitch:
22 (1 to 14) MM
Quill travel:
6" (150 mm)
Spindle nose:
D1-8 camlock
Thread pitch:
2 TPI
Width of bed:
16" (405 mm)
Quill diameter:
2.9" (75 mm)
Spindle speeds:
12 speeds
Swing over bed:
22" (560 mm)
Swing over gap:
30" (770 mm)
Quill bore taper:
MT #5
Top slide travel:
5.75" (145 mm)
Overall dimension:
137" x 45" x 57" (LxWxH)
Packing dimension:
143" x 55" x 84" (LxWxH)
Coolant pump motor:
1/8 HP (3-phase)
Cross slide travel:
10.2" (260 mm)
Leadscrew diameter:
1-9/16" (40 mm)
Longitudinal feeds:
0.0024"-0.0992" IN/REV
Power requirements:
220/440volts, 60 Hz, 3-phase, 50/25
Spindle speed range:
36-1600 RPM
Effective gap length:
9" (240 mm)
Spindle sleeve taper:
MT #6 with sleeve
Standard (whit-worth):
32 (2 to 28) TPI
Through hole diameter:
4.12" (105 mm)
Swing over cross slide:
12.5" (320 mm)
Dro installation charge:
$250.00
Distance between centers:
80" (2000 mm)
Taper turning attachment:
$1,200.00
5c lever style collet closer:
$1,195.00
Subcategory:
Engine

Description

Model: KLS-2280C
Swing over bed: 22" (560 mm)
Swing over cross slide: 12.5" (320 mm)
Swing over gap: 30" (770 mm)
Effective gap length: 9" (240 mm)
Width of bed: 16" (405 mm)
Distance between centers: 80" (2000 mm)
Cross slide travel: 10.2" (260 mm)
Top slide travel: 5.75" (145 mm)
Spindle speeds: 12 speeds
Spindle speed range: 36-1600 RPM
Through hole diameter: 4.12" (105 mm)
Spindle nose: D1-8 camlock
Spindle sleeve taper: MT #6 with sleeve
Standard (Whit-worth): 32 (2 to 28) TPI
Metric pitch: 22 (1 to 14) MM
Module (mm): 18 (0.5 to 7) MM
Diametral: 24 (4 to 56) DP
Longitudinal feeds: 0.0024"-0.0992" IN/REV
Cross feeds: 0.0011"-0.042" IN/REV
Leadscrew diameter: 1-9/16" (40 mm)
Thread pitch: 2 TPI
Quill travel: 6" (150 mm)
Quill diameter: 2.9" (75 mm)
Quill bore taper: MT #5
Main motor: 10 HP (3-phase)
Coolant pump motor: 1/8 HP (3-phase)
Overall dimension: 137" x 45" x 57" (LxWxH)
Packing dimension: 143" x 55" x 84" (LxWxH)
Net weight: 8580 lbs
Gross weight: 8800 lbs
Power requirements: 220/440volts, 60 Hz, 3-phase, 50/25
Amp.
*** Please note: All prices, features, and specifications
are subject to change without prior notice. Prices are
based FOB Southern, California.
CURRENT SPECIAL ACCESSORIES PACKAGE PROMOTION -- FREE
ACCESSORIES BELOW:
3-jaw chuck (12"), 4-jaw chuck (16")
Face plate (20"),Steady rest (3-8"), Follow rest (1-3")
4-way tool post, thread chasing dial
Coolant system, splash guard
Worklight, standard tools
These are the most competetively priced engine lathes on the
market today.
FEATURES:
* 10 HP main spindle motor, 12 speeds
* D1-8 camlock, 4.1" spindle bore
* Hardened and ground gears and bedways
* Jog button, 4-way rapid traverse
* Mechanical clutch style headstock
* Inch dials and leadscrews
* Centralized lube system in headstock
* Safety Foot brake
OPTIONS AND ACCESSORIES:
DRO system (Acu-Rite,Newall,Sony,etc.startingat ): *$2950.*
DRO installation charge: $250.00
Aloris DA #4-set (tool post plus 6 bars): $1,350.00
5C lever style collet closer*: $1,195.00
Royal spindle type live center (M.T. #5): $700.00
BTC 3-jaw chuck w/back plate (Zero-set, 10" D1-8):
$1,270.00
BTC 3-jaw chuck w/back plate (Zero-set, 12" D1-8):
$1,550.00
Taper turning attachment*: $1,200.00
Rustlick coolant (1 gallon, mixes 1:30): $50.00
