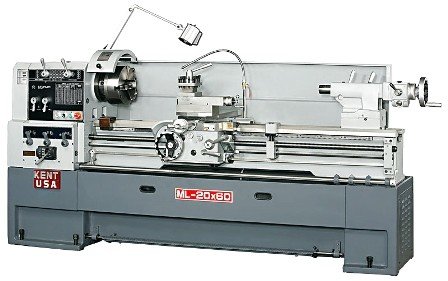

KENT ML2060T 20" x 60"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
ML2060T
Distance between Centers:
57" (1450mm)
Spindle Nose:
D1-6

Specifications

Condition:
new
Stock number:
3056
(note:
Installed options will require deposit; which is non-
Bed width:
12" (305mm)
Main motor:
7.5 HP
Cross feeds:
0.00075 - 0.02 IPR
Quill taper:
MT#4
Quill travel:
5" (130mm)
Spindle hole:
3.125" (80mm)
Spindle speed:
12 Steps, 36 - 1800 RPM
Swing over gap:
27.5" (700mm)
Cross slide width:
18.75" (477mm)
Longitudinal feed:
0.0015 - 0.04 IPR
Coolant pump motor:
1/8 HP
Cross slide travel:
10.6" (270mm)
Shipping dimension:
108"x39"x63"
Net weight (approx):
4510 lbs
Swing over bed ways:
20" (508mm)
Spindle nose camlock:
D1-6
Diametral pitch range:
21, 8 - 44 DP
Face plate (12" d1-6):
$650.00
Gross weight (approx):
5390 lbs
Modular threads range:
18, 0.3 - 3.5 M
Bearing length on ways:
17.3" (440mm)
Swing over cross slide:
14" (353mm)
Control circuit voltage:
115 V
Dro installation charge:
$250.00
Spindle to sleeve taper:
MT#7 - MT#4
Distance between centers:
57" (1450mm)
Micrometer carriage stop:
$350.00
Quill diameter with tang:
2.3" (59mm)
Taper turning attachment:
$1,575.00
Thread capacity (inches):
45, 2 - 72 TPI
Thread capacity (metric):
39, 0.2 - 14 MM
Gap length (w/ face plate):
8" (200mm)
Top slide (compound) travel:
4.75" (120mm)
5c lever style collet closer:
$ 1,195.00
Royal spindle type live center:
$550.00
4-jaw independent chuck (10" d1-6):
$680.00
Subcategory:
Engine

Description

Model: ML2060T
Capacity
Swing over bed ways: 20" (508mm)
Swing over cross slide: 14" (353mm)
Swing over gap: 27.5" (700mm)
Gap length (w/ face plate): 8" (200mm)
Bed width: 12" (305mm)
Distance between centers: 57" (1450mm)
Headstock:
Spindle hole: 3.125" (80mm)
Spindle nose camlock: D1-6
Spindle to sleeve taper: MT#7 - MT#4
Spindle speed: 12 Steps, 36 - 1800 RPM
Spindle speed ranges: N/A
Carriage:
Bearing length on ways: 17.3" (440mm)
Cross slide width: 18.75" (477mm)
Cross slide travel: 10.6" (270mm)
Top slide (compound) travel: 4.75" (120mm)
Feed Box:
Thread capacity (inches): 45, 2 - 72 TPI
Thread capacity (metric): 39, 0.2 - 14 MM
Modular threads range: 18, 0.3 - 3.5 M
Diametral pitch range: 21, 8 - 44 DP
Longitudinal feed: 0.0015 - 0.04 IPR
Cross feeds: 0.00075 - 0.02 IPR
Tailstock:
Quill diameter with tang: 2.3" (59mm)
Quill travel: 5" (130mm)
Quill taper: MT#4
Power:
Main motor: 7.5 HP
Coolant pump motor: 1/8 HP
Control circuit voltage: 115 V
Shipping dimension: 108"x39"x63"
Net weight (approx): 4510 lbs
Gross weight (approx): 5390 lbs
Power Requirement:
230 volts, 3-phase, 60 Hz, 30 Amp or
460 volts, 3-phase, 60 Hz, 15 Amp
Buy with confidence with the Precision Series engine lathes.
With quality built into every part, you can easily perform
heavy cuts and still turn with accuracy. Backed with the
longest industry warranty of two years on parts and coupled
with the strongest service team for over 20 years in the
industry, these represent the BEST value toolroom lathes on
the market today!
FEATURES:
* 7.5 HP Spindle Motor, 12-Speeds
* 3.125" Spindle Through Hole
* Solid Full Length Cast-Base with Front Loading Chip Trap
for Easy Cleaning
* Adjustable Over-load Feed Clutches
* Quick Reversal Feed from Apron
* Full-length Safety Foot Brake
* Spindle Jog Button Control
* One-shot Lubrication for Apron, Carriage, and Bed Ways *
Multi-position Adjustable Feed Position Stops * Dual
Inch/Metric Calibrated Tailstock Quill with knockout Tange *
Heavy Duty Two Speed Tailstock
* Dual Inch/Metric Dials with Quick-change sleeve
OPTIONAL ACCESSORIES:
Acu-Rite 200S DRO(2-axis, x=0.0001"/z=0.0002" res):
$2,800.00
DRO installation charge: $250.00
ALORIX CA #4-SET (tool post plus 6 holders): $ 1,350.00
5C lever style collet closer: $ 1,195.00
Royal spindle type live center: $550.00
BTC 3-jaw chuck w/back plate (Zero-set, 8" D1-6): $880.00
BTC 3-jaw chuck w/back plate (Zero-set, 10" D1-6): $1270.00
4-jaw independent Chuck (10" D1-6): $680.00
Face plate (12" D1-6): $650.00
Taper turning attachment: $1,575.00
Micrometer carriage stop: $350.00
Rustlick Coolant (1 gallon mixes 1:30): $50.00
(Note: Installed options will require deposit; which is non-
cancelable and non-refundable)
PRICE INCLUDES:
* 3-jaw chuck (10"), Steady rest, Follow rest, Chuck cover,
* Halogen work light, Thread chasing dial, 4-position tool
post,
* Coolant system with full-length splash guard, 3 Position
carriage stop and a bed mount carriage stop
