Top Seller

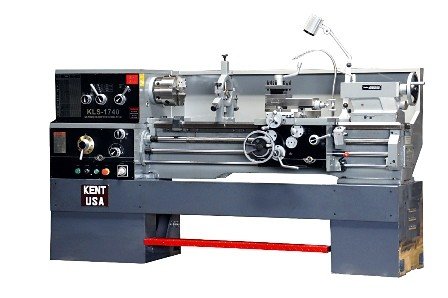

KENT KLS-1740 17" x 40"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
KLS-1740
Spindle Bore:
MT #6
Distance between Centers:
40" (1000 mm)

Specifications

Condition:
new
Stock number:
3733
Diametral:
45 (3-1/4 to 96) dp
Main motor:
6 or 4 HP (2-speed, 3-phase)
Net weight:
4090 lbs
Cross feeds:
0.0010"-0.0330" in/rev
Module (mm):
25 (0.25 to 10) mm
Gross weight:
4310 lbs
Metric pitch:
28 (0.5 to 20) mm
Quill travel:
4-3/4" (95 mm)
Spindle nose:
D1-6 camlock
Thread pitch:
4 tpi
Width of bed:
12-1/4" (315 mm)
Spindle speeds:
12 speeds (2 ranges)
Swing over bed:
17" (435 mm)
Swing over gap:
22" (560 mm)
Quill bore taper:
MT #4
Top slide travel:
4" (100 mm)
Overall dimension:
98" x 40" x 47" (LxWxH)
Packing dimension:
108" x 44" x 62" (LxWxH)
Coolant pump motor:
1/8 HP (3-phase)
Cross slide travel:
9.26" (235 mm)
Leadscrew diameter:
1.33" (34 mm)
Longitudinal feeds:
0.0014"-0.0439" in/rev
Spindle bore taper:
MT #6
Spindle speed range:
32-1800 rpm
Effective gap length:
7.87" (200 mm)
Standard (whit-worth):
65 (1-5/8 to 72) tpi
Through hole diameter:
2-1/32" (52 mm)
Swing over cross slide:
10.2" (260 mm)
Dro installation charge:
$250.00
Distance between centers:
40" (1000 mm)
Taper turning attachment:
$935.00
5c lever style collet closer:
$1145.00
Royal spindle type live center:
$395.00
Transformer for 440v power (5 kva):
$700.00
Subcategory:
Engine

Description

Model: KLS-1740(II)
Swing over bed: 17" (435 mm)
Swing over cross slide: 10.2" (260 mm)
Swing over gap: 22" (560 mm)
Effective gap length: 7.87" (200 mm)
Width of bed: 12-1/4" (315 mm)
Distance between centers: 40" (1000 mm)
Cross slide travel: 9.26" (235 mm)
Top slide travel: 4" (100 mm)
Spindle speeds: 12 speeds (2 ranges)
Spindle speed range: 32-1800 rpm
Through hole diameter: 2-1/32" (52 mm)
Spindle nose: D1-6 camlock
Spindle bore taper: MT #6
Standard (Whit-worth): 65 (1-5/8 to 72) tpi
Metric pitch: 28 (0.5 to 20) mm
Module (mm): 25 (0.25 to 10) mm
Diametral: 45 (3-1/4 to 96) dp
Longitudinal feeds: 0.0014"-0.0439" in/rev
Cross feeds: 0.0010"-0.0330" in/rev
Leadscrew diameter: 1.33" (34 mm)
Thread pitch: 4 tpi
Quill travel: 4-3/4" (95 mm)
Quill bore taper: MT #4
Main motor: 6 or 4 HP (2-speed, 3-phase)
Coolant pump motor: 1/8 HP (3-phase)
Overall dimension: 98" x 40" x 47" (LxWxH)
Packing dimension: 108" x 44" x 62" (LxWxH)
Net weight: 4090 lbs
Gross weight: 4310 lbs
FEATURES:
* 6 HP main spindle motor
* 12 speeds, all geared headstock
* Hardened and ground gears and bedways
* Centralized lube system in headstock
* Cast iron machine bedways and base
* Removable chip pan for easy clean up
* Foot brake and T-Slot compound
* Inch/metric ruler on tailstock quill
* ISO 9001 certified manufacturer
SPECIAL ACCESSORIES PACKAGE PROMOTION - FREE!
3-jaw chuck (8"), 4-jaw chuck (10"), Face plate (15-3/4")
Drive plate, Steady rest, Follow rest
4-position tool post, Coolant system
Full-length splash guard, Thread chasing dial
Position stop, Worklight, Standard tools
OPTIONS AND ACCESSORIES:
Acu-Rite 200s DRO (2-axis, x=0.0001"/z=0.0002" res):
$2240.00
DRO installation charge: $250.00
Aloris CXA Quick Change Set#3 (tool post plus 6 bars):
$1075.00
5C lever style collet closer: $1145.00
Royal spindle type live center: $395.00
BTC 3-jaw chuck w/back plate (Zero-set, 8" D1-6): $800.00
BTC 3-jaw chuck w/back plate (Zero-set, 10" D1-6): $1155.00
Taper turning attachment: $935.00
Transformer for 440v power (5 KVA): $700.00
Prolong Ultra-Cut coolant (2.5 gallon, mixes 1:30): $150.00
Prolong Anti-Friction lubricant (1 quart, mixes 1:10):
$35.00
* Installed options are non-refundable, non-cancelable.
