Top Seller

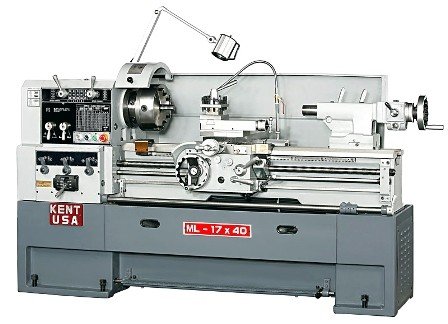

KENT ML-1740T 17" x 40"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
ML-1740T
Distance between Centers:
44" (1120mm)
Spindle Nose:
D1-6

Specifications

Condition:
new
Stock number:
2314
Bed width:
12" (305mm)
Main motor:
7.5 HP
Cross feeds:
0.00075 - 0.02 IPR
Quill taper:
MT#4
Quill travel:
5" (130mm)
Spindle hole:
3.125" (80mm)
Spindle speed:
12 Steps, 36 - 1800 RPM
Swing over gap:
24.5" (622mm)
Dro installation:
$250.00
Cross slide width:
18.75" (477mm)
Coolant pump motor:
1/8 HP
Cross slide travel:
10.6" (270mm)
Longitudinal feeds:
0.0015 - 0.04 IPR
Shipping dimension:
88"x39"x63"
Net weight (approx):
3850 LBS
Swing over bed ways:
17" (435mm)
Spindle nose camlock:
D1-6
Diametral pitch range:
21, 8 - 44 DP
Face plate (12" d1-6):
$650.00
Gross weight (approx):
4510 lbs
Modular threads range:
18, 0.3 - 3.5 M
Bearing length on ways:
17.3" (440mm)
Swing over cross slide:
10.875" (277mm)
Control circuit voltage:
115 V
Spindle to sleeve taper:
MT#7 - MT#4
Distance between centers:
44" (1120mm)
Micrometer carriage stop:
$350.00
Quill diameter with tang:
2.3" (59mm)
Taper turning attachment:
*$ 1,500.00
Thread capacity (inches):
45, 2 - 72 TPI
Thread capacity (metric):
39, 0.2 - 14 MM
Gap length (w/ face plate):
8" (200mm)
Top slide (compound) travel:
4.75" (120mm)
5c lever style collet closer:
$ 1,145.00
Royal spindle type live center:
$500.00
4-jaw independent chuck (10" d1-6):
$650.00
Subcategory:
Engine

Description

Model: ML-1740T
Swing over bed ways: 17" (435mm)
Swing over cross slide: 10.875" (277mm)
Swing over gap: 24.5" (622mm)
Gap length (w/ face plate): 8" (200mm)
Bed width: 12" (305mm)
Distance between centers: 44" (1120mm)
Spindle hole: 3.125" (80mm)
Spindle nose camlock: D1-6
Spindle to sleeve taper: MT#7 - MT#4
Spindle speed: 12 Steps, 36 - 1800 RPM
Spindle speed ranges: N/A
Bearing length on ways: 17.3" (440mm)
Cross slide width: 18.75" (477mm)
Cross slide travel: 10.6" (270mm)
Top slide (compound) travel: 4.75" (120mm)
Thread capacity (inches): 45, 2 - 72 TPI
Thread capacity (metric): 39, 0.2 - 14 MM
Modular threads range: 18, 0.3 - 3.5 M
Diametral pitch range: 21, 8 - 44 DP
Longitudinal feeds: 0.0015 - 0.04 IPR
Cross feeds: 0.00075 - 0.02 IPR
Quill diameter with tang: 2.3" (59mm)
Quill travel: 5" (130mm)
Quill taper: MT#4
Main motor: 7.5 HP
Coolant pump motor: 1/8 HP
Control circuit voltage: 115 V
Shipping dimension: 88"x39"x63"
Net weight (approx): 3850 LBS
Gross weight (approx): 4510 lbs
EQUIPPED WITH:
3-jaw Chuck (10"), Steady rest, Follow rest, Chuck cover,
Halogen work light, Thread chasing dial, 4-position tool
post,
Coolant system with full-length splashguard, 3 Position
carriage stop and a bed mount carriage stop
FEATURES:
* 7.5 HP Spindle Motor, 12-Speeds
* 3.125" Spindle Through Hole
* Solid Full Length Casting Base
* Front Loading Chip Tray for Easier Cleaning
* Adjustable Over-load Feed Clutches
* Quick Reversal Feed from Apron
* Full-length Safety Foot Brake
* Spindle Jog Button Control
* One-shot Lubrication for Apron
* Carriage, and Bed Ways
* Multi-position Adjustable Feed Position Stops
* Dual Inch/Metric Calibrated Tailstock
* Quill with Knockout Tang
* Heavy Duty Two Speed Tailstock
* Dual Inch/Metric Dials with Quick-change sleeve
OPTIONAL ACCESSORIES:
Acu-Rite 200S DRO* (2-axis, x=0.0001"/z=0.0002" res):
$2,240.00
DRO Installation: $250.00
ALORIS CA #4 Quickchange Set (tool post plus 6 holders):
$1,285.00
5C lever style collet closer: $ 1,145.00
Royal spindle type live center: $500.00
BTC 3-jaw chuck w/back plate (Zero-set, 8" D1-6): $800.00
BTC 3-jaw chuck w/back plate (Zero-set, 10" D1-6):
$ 1,155.00
4-jaw independent Chuck (10" D1-6): $650.00
Face plate (12" D1-6): $650.00
Taper turning attachment: *$ 1,500.00
Micrometer carriage stop: $350.00
Prolong Ultra-Cut coolant (2.5 gallon, mixes 1:30): $150.00
* Installed options may required deposit; which is non-
cancelable and non-refundable.
POWER REQUIREMENTS:
230 volts, 3-phase, 60 Hz, 20 Amp (Standard) 460 volts, 3-
phase, 60 Hz, 10 Amp (Avail on order)
