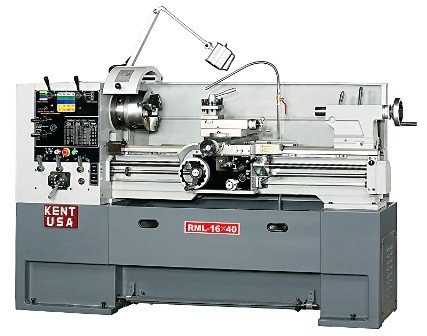

KENT RML-1640T 16" x 40"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
RML-1640T
Spindle Bore:
MT #6
Distance between Centers:
40" (1000 mm)

Specifications

Condition:
new
Stock number:
2593
Main motor:
5 HP (3-phase, 220/440V)
Net weight:
3520 lbs
Cross feeds:
0.001"-0.034" IN/REV
Diametrical:
21 (8-44) DP
Module (mm):
18 (0.3-3.5)
Gross weight:
3960 lbs
Metric pitch:
39 (0.2-14) MM
Quill travel:
6" (155 mm)
Spindle nose:
D1-6 camlock
Thread pitch:
4 TPI
Width of bed:
10-1/4" (260 mm)
Quill diameter:
2" (52 mm)
Spindle speeds:
12 steps
Swing over bed:
16-3/16" (410 mm)
Swing over gap:
23" (584 mm)
Quill bore taper:
MT #4
Top slide travel:
5-1/2" (140 mm)
Overall dimension:
81" x 38" x 62" (LxWxH)
Packing dimension:
87" x 42" x 66" (LxWxH)
Coolant pump motor:
1/8 HP (3-phase)
Cross slide travel:
8-11/16" (220 mm)
Leadscrew diameter:
4/5" (20 mm)
Longitudinal feeds:
0.002"-0.067" IN/REV
Power requirements:
220/440 volts, 60 Hz, 3-phase, 17/8.5
Spindle bore taper:
MT #6
Spindle speed range:
36-1800 RPM
Standard (whit-worth):
45 (2-72) TPI
Through hole diameter:
2-1/16" (52.5 mm)
Swing over cross slide:
10-3/8" (264 mm)
Distance between centers:
40" (1000 mm)
Subcategory:
Engine

Description

Model: RML-1640T
Swing over bed: 16-3/16" (410 mm)
Swing over cross slide: 10-3/8" (264 mm)
Swing over gap: 23" (584 mm)
Width of bed: 10-1/4" (260 mm)
Distance between centers: 40" (1000 mm)
Cross slide travel: 8-11/16" (220 mm)
Top slide travel: 5-1/2" (140 mm)
Spindle speeds: 12 steps
Spindle speed range: 36-1800 RPM
Through hole diameter: 2-1/16" (52.5 mm)
Spindle nose: D1-6 camlock
Spindle bore taper: MT #6
Standard (Whit-worth): 45 (2-72) TPI
Metric pitch: 39 (0.2-14) MM
Module (mm): 18 (0.3-3.5)
Diametrical: 21 (8-44) DP
Longitudinal feeds: 0.002"-0.067" IN/REV
Cross feeds: 0.001"-0.034" IN/REV
Leadscrew diameter: 4/5" (20 mm)
Thread pitch: 4 TPI
Quill travel: 6" (155 mm)
Quill diameter: 2" (52 mm)
Quill bore taper: MT #4
Main motor: 5 HP (3-phase, 220/440V)
Coolant pump motor: 1/8 HP (3-phase)
Overall dimension: 81" x 38" x 62" (LxWxH)
Packing dimension: 87" x 42" x 66" (LxWxH)
Net weight: 3520 lbs
Gross weight: 3960 lbs
EQUIPPED WITH THE FOLLOWING FREE PROMOTION TOOLING PACKAGE:
3-jaw chuck (9"), Chuck cover, Steady rest, Follow rest, 4-
position tool post, Coolant system, Full-length splashguard,
Halogen work light, Carriage stop, Thread chasing dial,
Toolbox with standard tools
FEATURES:
* 5 HP main spindle motor
* 36-1800, 12 steps spindle speeds
* Hardened and ground gears and bedways
* Cast iron machine bedways w/full onepiece cast base and
front pull-out chip tray for easier cleaning
* Foot brake and T-Slot compound Inch/metric reading on
dials
* Inch/metric ruler on tailstock quill
* ISO 9001 certified manufacturer
OPTIONS AND ACCESSORIES:
Acu-Rite 200T DRO (2-axis, x=0.0001"/z=0.0002"res) Aloris
CXA #3-Set (tool post plus 6 holders) Micro Carriage Stop
Royal 5C lever style collet closer Royal spindle type live
center
BTC 3-jaw chuck (Zero-set, 8" D1-6) BTC 3-jaw chuck (Zero-
set, 10" D1-6)
4-jaw independent chuck (10" D1-6) Taper turning attachment
Face plate (12" D1-6)
Prolong Ultra-cut coolant (2.5 gal, mixes 1:30)
POWER REQUIREMENTS: 220/440 volts, 60 Hz, 3-phase, 17/8.5
Amp.
