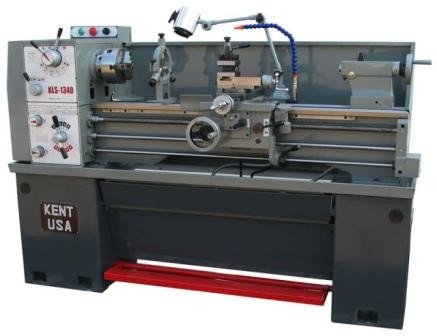

KLS-1340A 13" x 40" cc,
Location:
McClellan Park, CA
Manufacturer:
N/A
Model:
KLS-1340A
Spindle Bore:
MT #5
Distance between Centers:
40" (1000 mm)

Specifications

Condition:
new
Stock number:
4413
Main motor:
2 HP, 220 Volt, Single Phase
Net weight:
1100 lbs
Cross feeds:
0.00086"-0.0367" IN/REV
Gross weight:
1310 lbs
Metric pitch:
32 (0.4-7) MM
Quill travel:
3-5/8" (95 mm)
Spindle nose:
D1-4 camlock
Thread pitch:
8 TPI
Width of bed:
7 3/8" (187 mm)
Quill diameter:
1-1/2" (40 mm)
Spindle speeds:
8 Speed
Swing over bed:
13" (330 mm)
Swing over gap:
18-3/4" (476 mm)
Quill bore taper:
MT #3
Top slide travel:
3" (75 mm)
Overall dimension:
76" x 29" x 47" (LxWxH)
Packing dimension:
80" x 35" x 61" (LxWxH)
Cross slide travel:
6-1/2" (165 mm)
Leadscrew diameter:
7/8" (22 mm)
Longitudinal feeds:
0.0032"-0.1067" IN/REV
Spindle bore taper:
MT #5
Spindle speed range:
70-2000 RPM
Standard (whit-worth):
32 (4-56) TPI
Through hole diameter:
1-1/2" (38 mm)
Swing over cross slide:
7-1/4" (185 mm)
Distance between centers:
40" (1000 mm)
Subcategory:
Engine

Description

Model: KLS-1340A
Swing over bed: 13" (330 mm)
Swing over cross slide: 7-1/4" (185 mm)
Swing over gap: 18-3/4" (476 mm)
Width of bed: 7 3/8" (187 mm)
Distance between centers: 40" (1000 mm)
Cross slide travel: 6-1/2" (165 mm)
Top slide travel: 3" (75 mm)
Spindle speeds: 8 Speed
Spindle speed range: 70-2000 RPM
Through hole diameter: 1-1/2" (38 mm)
Spindle nose: D1-4 camlock
Spindle bore taper: MT #5
Standard (Whit-worth): 32 (4-56) TPI
Metric pitch: 32 (0.4-7) MM
Longitudinal feeds: 0.0032"-0.1067" IN/REV
Cross feeds: 0.00086"-0.0367" IN/REV
Leadscrew diameter: 7/8" (22 mm)
Thread pitch: 8 TPI
Quill travel: 3-5/8" (95 mm)
Quill diameter: 1-1/2" (40 mm)
Quill bore taper: MT #3
Main motor: 2 HP, 220 Volt, Single Phase
Coolant pump motor: N/A
Overall dimension: 76" x 29" x 47" (LxWxH)
Packing dimension: 80" x 35" x 61" (LxWxH)
Net weight: 1100 lbs
Gross weight: 1310 lbs.
FEATURES:
* 2 HP main spindle motor
* 8 speeds, all geared headstock
* Jog button for easy gear changes
* Hardened and ground gears and bedways
* Foot brake and T-Slot compound
* Inch reading on dials
* Inch/metric ruler on tailstock quill
* ISO 9001 certified manufacturer
SPECIAL ACCESSORIES PACKAGE PROMOTION ... BELOW ACCESSORIES
FREE!!
* 3-jaw chuck (6"), 4-jaw chuck (8"), Face plate (12")
* Steady rest, Follow rest, 4-position tool post
* Coolant system, Full-length splash guard, Thread chasing
dial, Toolbox with standard tools.
** THIS PRICE IS F.O.B. OUR STORE / SCOTT MACHINERY **
