Top Seller

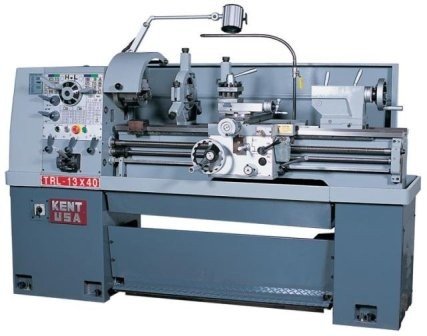

KENT TRL-1340 13" x 40"
Location:
McClellan Park, CA
Manufacturer:
Kent lathes
Model:
TRL-1340
Spindle Bore:
MT #5
Distance between Centers:
40" (1000 mm)

Specifications

Condition:
new
Stock number:
1857
Capable):
$3,000 option
Diametral:
21 (8-44) DP
Main motor:
5 HP (2-Speed, 3 Phase, 60 Hz)
Net weight:
2200 LBS
Module (mm):
18 (0.3-3.5) MOD
Gross weight:
2440 LBS
Metric pitch:
39 (0.2-14) MM
Quill travel:
4" (105 mm)
Requirements:
220 volts, 60 Hz, 3-phase, 10 Amp
Spindle nose:
ASA D1-4 camlock
Thread pitch:
4 TPI
Width of bed:
9" (230 mm)
Quill diameter:
2" (50 mm)
Swing over bed:
13-3/8" (340 mm)
Swing over gap:
20" (508 mm)
Cross feed range:
0.001"-0.0375"
Or for trl-1340v:
5 HP (20 - 100 HZ)
Quill bore taper:
MT #3
Top slide travel:
4" (105 mm)
Overall dimension:
81-1/2" x 31-7/8" (LxW)
Packing dimension:
90" x 29" x 60" (LxWxH)
Coolant pump motor:
1/8 HP (3-phase)
Cross slide travel:
7" (180 mm)
Leadscrew diameter:
1-1/8" (28.5 mm)
Spindle bore taper:
MT #5
Standard (whit-worth):
45 (2-72) TPI
Through hole diameter:
1-9/16" (40 mm)
Swing over cross slide:
8-1/4" (210 mm)
Longitudinal feed range:
0.002"-0.067"
Distance between centers:
40" (1000 mm)
2 speeds motor (16 steps):
50-2570 RPM
Rustlick coolant (1 gal, mixes 1:
30)
Subcategory:
Engine

Description

Model: TRL-1340 Precision Series
or TRL-1340V
Variable Speed Frequency Drive Version (single phase
capable): $3,000 option
MACHINE CAPACITIES:
Swing over bed: 13-3/8" (340 mm)
Swing over cross slide: 8-1/4" (210 mm)
Swing over gap: 20" (508 mm)
Width of bed: 9" (230 mm)
Distance between centers: 40" (1000 mm)
Cross slide travel: 7" (180 mm)
Top slide travel: 4" (105 mm)
MAIN SPINDLE:
2 Speeds motor (16 Steps): 50-2570 RPM
Through hole diameter: 1-9/16" (40 mm)
Spindle nose: ASA D1-4 camlock
Spindle bore taper: MT #5
THREADS:
Standard (Whit-worth): 45 (2-72) TPI
Metric pitch: 39 (0.2-14) MM
Module (mm): 18 (0.3-3.5) MOD
Diametral: 21 (8-44) DP
FEEDS:
Longitudinal feed range: 0.002"-0.067"
Cross feed range: 0.001"-0.0375"
Leadscrew
Leadscrew diameter: 1-1/8" (28.5 mm)
Thread pitch: 4 TPI
TAILSTOCK:
Quill travel: 4" (105 mm)
Quill diameter: 2" (50 mm)
Quill bore taper: MT #3
POWER:
Main motor: 5 HP (2-Speed, 3 Phase, 60 Hz)
or for TRL-1340V: 5 HP (20 - 100 HZ)
Coolant pump motor: 1/8 HP (3-phase)
Requirements: 220 volts, 60 Hz, 3-phase, 10 Amp.
DIMENSIONS:
Overall dimension: 81-1/2" x 31-7/8" (LxW)
Packing dimension: 90" x 29" x 60" (LxWxH)
Net weight: 2200 LBS
Gross weight: 2440 LBS
POWER REQUIREMENTS:
220v, 60 Hz, 3-phase, 20 Amp. For TRL-1340/1340V
220v, 60 Hz, 1-phase, 30 Amp. For TRL-1340V
EQUIPPED WITH - SPECIAL ACCESSORIES PACKAGE - FREE:
* 3-Jaw chuck (7")
* Steady rest
* Follow rest
* 4-position tool post
* Coolant system
* Full length splash guard
* Halogen worklight
* Thread chasing dial
* Toolbox with standard tools
OUTSTANDING FEATURES:
* Heaviest duty 13" lathe in its class
* 3 HP main spindle motor
* 16 speeds, all geared headstock
* Jog button for easy gear changes
* Hardened and ground gears and bedways
* Cast iron machine bedways and base
* Removable chip pan for easy clean up
* Foot brake and T-Slot compound
* Inch/metric reading on dials
* Inch/metric ruler on tailstock quill
* ISO 9001 certified manufacturer
OPTIONS AND ACCESSORIES:
Acu-Rite 200S DRO (2-axis, x=0.0001"/z=0.0002" res)
Aloris CXA #3-BS (tool post plus 4 holders)
5C lever style collet closer
Royal spindle type live center
BTC 3-jaw chuck w/back plate (Zero-set, 8" D1-4)
4-jaw independent chuck (8" D1-4)
Taper turning attachment:
Transformer for 440v power (5 KVA)
10HP Phase converter for single phase power (rotary-type)
Micro carriage stop
Face plate (12")
Rustlick coolant (1 gal, mixes 1:30)
