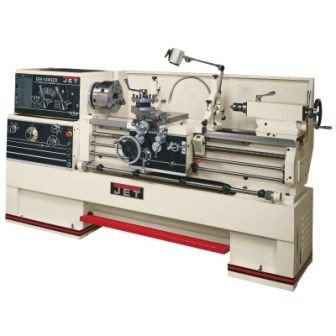

JET GH-1440ZX 14" x 40"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
GH-1440ZX
Spindle Bore:
3-1/8
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
7879
Motor:
7-1/2HP, 3Ph, 230V/460V
Width:
45 inch
Height:
66 inch
Length:
97 inch
Prewired:
230V
Net weight:
5187 pound
Stock number:
321910
Spindle mount:
D1-8
Overall dimensions:
97-1/2 x 40 x 46-7/8
Spindle bore (in.):
3-1/8
Width of bed (in.):
13-3/8
Length of gap (in.):
12-1/4
Max tool size (in.):
1 x 1
Swing over bed (in.):
14
Carriage travel (in.):
35
Number of inch threads:
61
Range of metric threads:
05-20
Spindle taper w/ sleeve:
MT-7 (MT-5)
Swing through gap (in.):
23-5/8
Cross slide travel (in.):
9
Number of metric threads:
24
Number of spindle speeds:
12
Follow rest capacity (in.):
1/2-3-1/2
Range of cross feeds (ipr):
0006-.0365
Steady rest capacity (in.):
3/8-7
Taper in tailstock spindle:
MT-4
Compound slide travel (in.):
5-1/8
Range of inch threads (tpi):
1-5/8-72
Swing over cross slide (in.):
7-5/8
Range of spindle speeds (rpm):
42-1,800
Distance between centers (in.):
40
Tailstock spindle travel (in.):
5
Range of longitudinal feeds (ipr):
0015-.0913
Subcategory:
Engine

Description

Model: GH-1440ZX
Stock Number: 321910
Swing over Bed (in.): 14
Swing over Cross Slide (in.): 7-5/8
Swing Through Gap (in.): 23-5/8
Length of Gap (in.): 12-1/4
Distance Between Centers (in.): 40
Spindle Bore (in.): 3-1/8
Spindle Mount: D1-8
Spindle Taper W/ Sleeve: MT-7 (MT-5)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 42-1,800
Number of Longitudinal and Cross Feed Rates: 122
Range of Longitudinal Feeds (IPR): .0015-.0913
Range of Cross Feeds (IPR): .0006-.0365
Number of Inch Threads: 61
Range of Inch Threads (TPI): 1-5/8-72
Number of Metric Threads: 24
Range of Metric Threads: .05-20
Max Tool Size (in.): 1 x 1
Compound Slide Travel (in.): 5-1/8
Cross Slide Travel (in.): 9
Carriage Travel (in.): 35
Tailstock Spindle Travel (in.): 5
Taper in Tailstock Spindle: MT-4
Steady Rest Capacity (in.): 3/8-7
Follow Rest Capacity (in.): 1/2-3-1/2
Width of Bed (in.): 13-3/8
Motor: 7-1/2HP, 3Ph, 230V/460V
Prewired: 230V
Overall Dimensions: 97-1/2 x 40 x 46-7/8
Height: 66 inch
Width: 45 inch
Length: 97 inch
Net Weight: 5187 pound
FEATURES:
* 14" ZX SERIES LARGE SPINDLE BORE LATHES
* Uniquely designed exclusively by JET
* ISO 9001 certified manufacturer
* 3-1/8" bore spindle is supported by two tapered and one
ball bearing
* Chrome molybdenum headstock gears are hardened, ground,
and shaved
* Universal gearbox allows inch, metric, diametral, and
module pitch threads, no change gears required
* Carriage Feature one-shot lubrication and Turcite B on
bed sliding surfaces
* T-slotted compound slide featuring a four-way tool post
* One-piece cast iron base absorbs vibration allowing
heavier cuts
* High quality ANSI Class 50 wear-resistant cast iron bed
ways are hardened and ground
* Removable gap allows up to 23-5/8" diameter work
* Five position automatic carriage stop increases
productivity
* Attractive chrome control levers, dials, and knobs
complete this impressive package
STANDARD EQUIPMENT:
* Tolerance test certificate included
* 10" 3-jaw scroll chuck with top reversing jaws
* 12" 4-jaw independent chuck
* 12" face plate
* Four-way tool post
* Follow rest
* Large capacity steady rest
* Fully integrated coolant system
* Full length splash guard and coolant return
* Large easy to use foot brake
* Articulating halogen work lamp
* Centrally located controls with jog button
* Threading dial
* Mounting pads and levelers
* Spindle sleeve (MT-7 to MT-5)
* Dead center and live center
* Tool box and adjusting tools
* Chuck Guard
2-YEAR FACTORY WARRANTY INCLUDED!!
