Top Seller

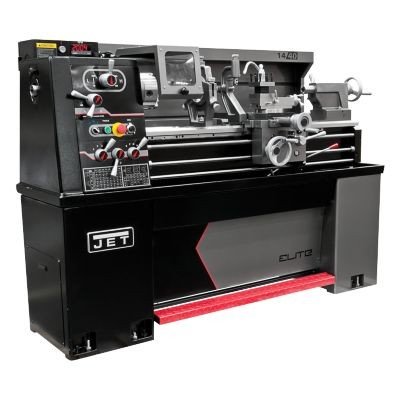

ELITE E-1440VS 14" x 40"
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
E-1440VS
Spindle Bore:
1-1/2
Distance between Centers:
40

Specifications

Condition:
new
Stock number:
8149
Motor (hp):
3HP, 230V, 1Ph CSA/UL Certified
Stock number:
892030
Spindle mount:
D1-4
Weight (lbs.):
1,653
Coolant pump motor:
1/8 HP
Spindle bore (in.):
1-1/2
Width of bed (in.):
8-1/2
Length of gap (in.):
9
Max tool size (in.):
7/8 x 7/8
Swing over bed (in.):
14
Number of cross feeds:
40
Number of inch threads:
40
Range of metric threads:
0.45 - 7.5
Swing through gap (in.):
20
Cross slide travel (in.):
7
Number of metric threads:
22
Number of spindle speeds:
Variable
Spindle taper with sleeve:
MT-5
Follow rest capacity (in.):
1/4 - 2-3/8
Range of cross feeds (ipr):
0.0003 - 0.0294
Steady rest capacity (in.):
1/4 - 2-3/4
Taper in tailstock spindle:
MT-3
Compound slide travel (in.):
4
Range of inch threads (tpi):
4 - 112
Number of longitudinal feeds:
40
Swing over cross slide (in.):
8-5/8
Range of spindle speeds (rpm):
30 - 2200
Distance between centers (in.):
40
Tailstock spindle travel (in.):
4-3/4
Range of longitudinal feeds (ipr):
0.0012 - 0.0294
Subcategory:
Engine

Description

Model: E-1440VS
Stock Number: 892030
Swing Over Bed (In.): 14
Swing Over Cross Slide (In.): 8-5/8
Swing Through Gap (In.): 20
Length of Gap (In.): 9
Distance Between Centers (In.): 40
Spindle Bore (In.): 1-1/2
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 30 - 2200
Number of Longitudinal Feeds: 40
Range of Longitudinal Feeds (IPR): 0.0012 - 0.0294
Number of Cross Feeds: 40
Range of Cross Feeds (IPR): 0.0003 - 0.0294
Number of Inch Threads: 40
Range of Inch Threads (TPI): 4 - 112
Number of Metric Threads: 22
Range of Metric Threads: 0.45 - 7.5
Max Tool Size (In.): 7/8 x 7/8
Compound Slide Travel (In.): 4
Cross Slide Travel (In.): 7
Tailstock Spindle Travel (In.): 4-3/4
Taper in Tailstock Spindle: MT-3
Follow Rest Capacity (In.): 1/4 - 2-3/8
Steady Rest Capacity (In.): 1/4 - 2-3/4
Width of Bed (In.): 8-1/2
Motor (HP): 3HP, 230V, 1Ph CSA/UL Certified
Coolant Pump Motor: 1/8 HP
Weight (Lbs.): 1,653
Overall Dimensions (L x W x H) (In.): 77 x 30 x 58
FEATURES:
* 1-1/2" - 1-9/16" spindle bore
* Two speed gearbox allows low speeds from 40-365 RPM to
high speeds from 165 - 2000 RPM
* Hardened and ground gears in headstock reduce vibration
and deflection
* Class 7 precision taper roller bearings keep spindle run
out to a maximum of 0.0004"
* Fully lit with CNC-style lighting the enclosed full length
splash guard is expertly designed to contain all chips and
coolant.
* Overload clutch at feed shaft prevents the carriage from
crashing into the chuck
* Certified Meehanite castings retain their tolerances and
remain rigid through many years of machining
* Integrated locking tool cabinet in stand on 12" Lathe
* LED RPM readout allows for precise turning speeds
* Following strict guidelines, CSA/UL electrics have been
added for increased safety
STANDARD EQUIPMENT:
* 6" 3-Jaw chuck
* 10" faceplate for 12" Lathes
* 12" faceplate for 13" & 14" Lathes
* Steady rest- ball bearing
* Follow rest- ball bearing
* 4-Way tool post
* 4-Position carriage stop
* Chuck guard
* Micro-carriage bed stop
* Threading dial
* Coolant system
* Center sleeve
* Dead center
* Level pads
* Tool box with tools
3-YEAR FACTORY WARRANTY INCLUDED!!
