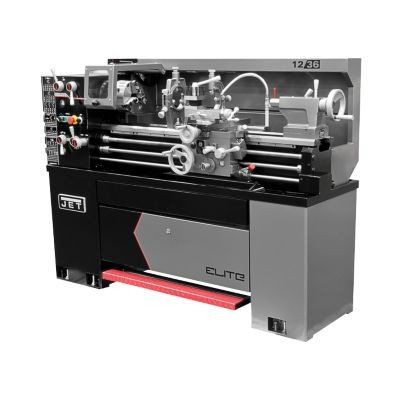

ELITE E-1236VS 12" x 36"
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
E-1236VS
Spindle Bore:
1-9/16
Distance between Centers:
36

Specifications

Condition:
new
Stock number:
8151
Motor (hp):
2HP, 230V, 1Ph CSA/UL Certified
Stock number:
892000
Spindle mount:
D1-4
Weight (lbs.):
1,212
Coolant pump motor:
1/8 HP
Spindle bore (in.):
1-9/16
Width of bed (in.):
7-1/2
Length of gap (in.):
9-1/2
Max tool size (in.):
1/2 x 1/2
Swing over bed (in.):
12
Number of cross feeds:
25
Number of inch threads:
34
Range of metric threads:
0.5 - 12
Swing through gap (in.):
17-1/2
Cross slide travel (in.):
6-3/4
Number of metric threads:
33
Number of spindle speeds:
Variable
Spindle taper with sleeve:
MT-5
Follow rest capacity (in.):
1/4 - 1-1/8
Range of cross feeds (ipr):
0.0005 - 0.015
Steady rest capacity (in.):
1/4 - 2-1/2
Taper in tailstock spindle:
MT-3
Compound slide travel (in.):
3-1/2
Range of inch threads (tpi):
2 - 56
Number of longitudinal feeds:
25
Swing over cross slide (in.):
7-5/16
Range of spindle speeds (rpm):
40 - 2000
Distance between centers (in.):
36
Tailstock spindle travel (in.):
4
Range of longitudinal feeds (ipr):
0.0016 - 0.046
Subcategory:
Engine

Description

Model: E-1236VS
Stock Number: 892000
Swing Over Bed (In.): 12
Swing Over Cross Slide (In.): 7-5/16
Swing Through Gap (In.): 17-1/2
Length of Gap (In.): 9-1/2
Distance Between Centers (In.): 36
Spindle Bore (In.): 1-9/16
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 40 - 2000
Number of Longitudinal Feeds: 25
Range of Longitudinal Feeds (IPR): 0.0016 - 0.046
Number of Cross Feeds: 25
Range of Cross Feeds (IPR): 0.0005 - 0.015
Number of Inch Threads: 34
Range of Inch Threads (TPI): 2 - 56
Number of Metric Threads: 33
Range of Metric Threads: 0.5 - 12
Max Tool Size (In.): 1/2 x 1/2
Compound Slide Travel (In.): 3-1/2
Cross Slide Travel (In.): 6-3/4
Tailstock Spindle Travel (In.): 4
Taper in Tailstock Spindle: MT-3
Follow Rest Capacity (In.): 1/4 - 1-1/8
Steady Rest Capacity (In.): 1/4 - 2-1/2
Width of Bed (In.): 7-1/2
Motor (HP): 2HP, 230V, 1Ph CSA/UL Certified
Coolant Pump Motor: 1/8 HP
Weight (Lbs.): 1,212
Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
FEATURES:
* 1-1/2" - 1-9/16" spindle bore
* Two speed gearbox allows low speeds from 40 - 365 RPM to
high speeds from 165 - 2000 RPM
* Hardened and ground gears in headstock reduce vibration
and deflection
* Class 7 precision taper roller bearings keep spindle run
out to a maximum of 0.0004"
* Fully lit with CNC-style lighting the enclosed full length
splash guard is expertly designed to contain all chips and
coolant.
* Overload cluth at feed shaft prevents the carriage from
crashing into the chuck
* Certified Meehanite castings retain their tolerances and
remain rigid through many years of machining
* Integrated locking tool cabinet in stand on 12" Lathe
* LED RPM readout allows for precise turning speeds
* Following strict guidelines, CSA/UL electrics have been
added for increased safety
STANDARD EQUIPMENT:
* 6" 3-Jaw chuck
* 10" faceplate for 12" Lathes
* Steady rest- ball bearing
* Follow rest- ball bearing
* 4-Way tool post
* 4-Position carriage stop
* Chuck guard
* Micro-carriage bed stop
* Threading dial
* Coolant system
* Center sleeve
* Dead center
* Level pads
* Tool box with tools
OPTIONAL ACCESSORIES:
* DIGITAL READOUT .. ACCURITE 200S, 300S, OR NEWALL DP700
* TAPER ATTACHMENT
* 5C COLLET CLOSER
* ALORIS QUICK CHANGE TOOLPOST
* 4-JAW CHUCK
3-YEAR FACTORY WARRANTY FOR PARTS & LABOR INCLUDED!!
