Top Seller

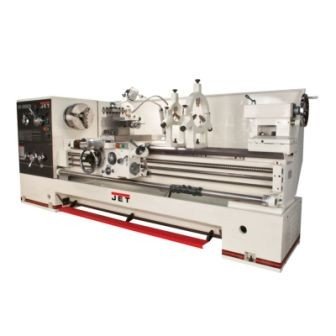

JET GH-2680ZH 26" x 80"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
GH-2680ZH
Spindle Bore:
4-1/8
Distance between Centers:
80

Specifications

Condition:
new
Stock number:
7877
Motor:
10HP, 230/460V, 3 Phase
Width:
43 inch
Height:
57 inch
Length:
136 inch
Prewired:
230V
Net weight:
8590 pound
Stock number:
321860
Spindle mount:
D1-8
Overall dimensions:
136 x 43 x 57 in
Spindle bore (in.):
4-1/8
Width of bed (in.):
16
Length of gap (in.):
8
Max tool size (in.):
1-1/4 x 1-1/4
Swing over bed (in.):
26
Carriage travel (in.):
72-1/2
Number of inch threads:
48
Range of metric threads:
1-14
Spindle taper w/ sleeve:
MT-5 (no sleeve)
Swing through gap (in.):
34
Cross slide travel (in.):
12-3/32
Number of metric threads:
22
Number of spindle speeds:
12
Follow rest capacity (in.):
25/32 - 3-15/16
Range of cross feeds (ipr):
010-.0404
Steady rest capacity (in.):
Small 25/32 - 4-29/32 Large 3-
Taper in tailstock spindle:
MT-5
Compound slide travel (in.):
5-1/2
Range of inch threads (tpi):
2-30
Swing over cross slide (in.):
16-1/2
Range of spindle speeds (rpm):
36-1600
Distance between centers (in.):
80
Tailstock spindle travel (in.):
6
Range of longitudinal feeds (ipr):
023-.937
Subcategory:
Engine

Description

Model: GH-2680ZH
Stock Number: 321860
Swing over Bed (in.): 26
Swing over Cross Slide (in.): 16-1/2
Swing Through Gap (in.): 34
Length of Gap (in.): 8
Distance Between Centers (in.): 80
Spindle Bore (in.): 4-1/8
Spindle Mount: D1-8
Spindle Taper W/ Sleeve: MT-5 (no sleeve)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 36-1600
Number of Longitudinal and Cross Feed Rates: 65
Range of Longitudinal Feeds (IPR): .023-.937
Range of Cross Feeds (IPR): .010-.0404
Number of Inch Threads: 48
Range of Inch Threads (TPI): 2-30
Number of Metric Threads: 22
Range of Metric Threads: 1-14
Max Tool Size (in.): 1-1/4 x 1-1/4
Compound Slide Travel (in.): 5-1/2
Cross Slide Travel (in.): 12-3/32
Carriage Travel (in.): 72-1/2
Tailstock Spindle Travel (in.): 6
Taper in Tailstock Spindle: MT-5
Steady Rest Capacity (in.): Small 25/32 - 4-29/32 Large 3-
15/16 - 9-7/16
Follow Rest Capacity (in.): 25/32 - 3-15/16
Width of Bed (in.): 16
Motor: 10HP, 230/460V, 3 Phase
Prewired: 230V
Overall Dimensions: 136 x 43 x 57 in
Height: 57 inch
Width: 43 inch
Length: 136 inch
Net Weight: 8590 pound
FEATURES:
* Large 4-1/8" Spindle Bore
* Turns 89 different thread sizes
* Clutch operated headstock with all headstock gears
hardened and ground
* Bed ways are induction hardened and ground for
durability
* Heavy-duty tailstock and quill
* One piece heavy-duty cast iron base and bed
* 12 speeds in range 36-1600 RPM
* Rapid power traverse to cross slide and carriage
* Headstock-gearbox designed for quick setup of thread
turning operation without changing gears.
STANDARD EQUIPMENT:
* 12" 3-Jaw Direct Mount Scroll Chuck with Jaws
* 16" 4-Jaw Chuck
* Face Plate
* 2 Steady Rests
* Follow Rest
* 4 Way Tool Post
* Coolant System
* Full Length Splash Guard
* Halogen Work Lamp
* Drive Plate
* Micro-carriage bed stop
2-YEAR FACTORY WARRANTY INCLUDED!!
