JET BD-920W 9" x 20"
Location:
McClellan Park, CA
Manufacturer:
JET Tools lathes
Model:
BD-920W
Spindle Bore:
7/8"
Distance between Centers:
20

Specifications

Condition:
new
Stock number:
43
Motor:
3/4HP, 1Ph, 115V only
Width:
22 inch
Height:
21 inch
Length:
42 inch
Prewired:
115V only
Net weight:
235 pound
Stock number:
321376
Spindle mount:
1/2" x 8 TPI
Spindle bore (in.):
7/8"
Width of bed (in.):
4-1/2
Max tool size (in.):
1/2 x 1/2
Swing over bed (in.):
9
Carriage travel (in.):
16
Number of inch threads:
30
Range of metric threads:
0.4 - 3.5
Spindle taper w/ sleeve:
MT-3
Cross slide travel (in.):
4-3/8
Number of metric threads:
18
Number of spindle speeds:
6
Follow rest capacity (in.):
1/4 - 1-1/8
Steady rest capacity (in.):
1/4 - 1-7/8
Taper in tailstock spindle:
MT-2
Compound slide travel (in.):
1-7/8
Range of inch threads (tpi):
8 - 60
Swing over cross slide (in.):
5-5/16
Range of spindle speeds (rpm):
130 - 2000
Distance between centers (in.):
20
Tailstock spindle travel (in.):
1-9/16
Range of longitudinal feeds (ipr):
0006 - .037
Subcategory:
Engine

Description

Model: BD-920W
Stock Number: 321376
Swing over Bed (in.): 9
Swing over Cross Slide (in.): 5-5/16
Distance Between Centers (in.): 20
Spindle Bore (in.): 7/8"
Spindle Mount: 1/2" x 8 TPI
Spindle Taper W/ Sleeve: MT-3
Number of Spindle speeds: 6
Range of Spindle Speeds (RPM): 130 - 2000
Number of Longitudinal and Cross Feed Rates: 60
Range of Longitudinal Feeds (IPR): .0006 - .037
Number of Inch Threads: 30
Range of Inch Threads (TPI): 8 - 60
Number of Metric Threads: 18
Range of Metric Threads: 0.4 - 3.5
Max Tool Size (in.): 1/2 x 1/2
Compound Slide Travel (in.): 1-7/8
Cross Slide Travel (in.): 4-3/8
Carriage Travel (in.): 16
Tailstock Spindle Travel (in.): 1-9/16
Taper in Tailstock Spindle: MT-2
Steady Rest Capacity (in.): 1/4 - 1-7/8
Follow Rest Capacity (in.): 1/4 - 1-1/8
Width of Bed (in.): 4-1/2
Motor: 3/4HP, 1Ph, 115V only
Prewired: 115V only
Height: 21 inch
Width: 22 inch
Length: 42 inch
Net Weight: 235 pound

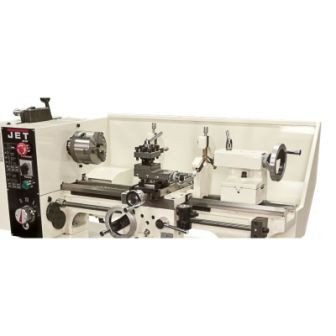

(SHOWN WITH OPTIONAL STAND) Our newest lathe includes an
enclosed gear box, reverse threading capabilities and
backlash adjustments provided throughout the carriage. With
features like a 7/8" spindle bore, a MT#3 tailstock and 6
spindle speeds you'll be able to turn some surprisingly
hefty projects! If you're thinking of making parts for
models, engines or even for repairs around the home or shop,
this is the lathe to own!
FEATURES:
* Spindle supported by precision tapered roller bearings
* Hardened and ground bedways
* Power Longitudinal feed allows threading and reverse
threading
* Enclosed gear box
* Standard 1-1/2 X 8 TPI spindle mount allows for many
aftermarket accessories
* Reversing switch included for added versatility
* Backlash adjustments provided throughout the carriage
* Tailstock is adjustable for taper cuts
* Quick change gearbox provides wide range of inch and
metric threads
STANDARD EQUIPMENT:
* 4" 3 jaw chuck with threaded back plate
* 7" 4 jaw chuck with threaded back plate
* Face plate
* Four way tool post
* Single tool post
* Steady and follow rest
* Metric Change gears
* Centers
* Threading dial
2-YEAR FACTORY WARRANTY INCLUDED!!
