Top Seller

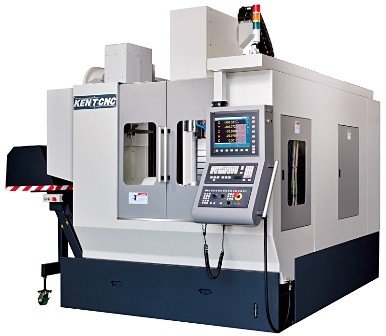

KENT KMC-400-5A 28"X, 22"Y, 19"Z,
Location:
McClellan Park, CA
Model:
KMC-400-5A
Spindle Taper:
CT-40

Specifications

Condition:
new
Stock number:
7975
Atc:
Arm-type 60 Tool Changer
X - travel:
29.9" (760 mm)
Y - travel:
24" (610 mm)
Z - travel:
20" (510 mm)
Spindle speed:
12,000 RPM
Spindle taper:
CT-40
Machine weight:
13,228 lbs(6,000 kg)
Rapid traverse:
1,181 ipm (30 m/min)
Machine dimensions:
98" x 134" x 102" (2500mm x 3400mm x
Travel x, y, z-axis:
28" x 22" x 19"
Spindle motor (max rating):
15 HP (7.5 Kw)

Description

Model: KMC-400-5A
X - Travel: 29.9" (760 mm)
Y - Travel: 24" (610 mm)
Z - Travel: 20" (510 mm)
Spindle Taper: CT-40
Spindle Speed: 12,000 RPM
Rapid Traverse: 1,181 ipm (30 m/min)
Spindle Motor (Max Rating): 15 HP (7.5 Kw)
ATC: Arm-type 60 Tool Changer
Machine Weight: 13,228 lbs(6,000 kg)
Machine Dimensions: 98" x 134" x 102" (2500mm x 3400mm x
2600mm)
FEATURES:
* 20 hp Spindle Motor
* 12,000 rpm High Performance BBT-40 Spindle w/Chiller
* Travel X, Y, Z-axis: 28" x 22" x 19"
* Fagor 8065i CNC Control (Click to View Control Brochure)
* 400 Work Offsets
* 48 Work Coordinates
* 400 Registered Part Program Storage
* Massive cast iron construction
* 12000 RPM high rigid spindle
* Direct-coupled servomotors
* Full splash safety guard
* Air cooling system
* Spindle air blast (taper)
* Spindle air blower
* Auto lubrication system
* Cycle end alarm light
* Halogen work lamp
* Leveling bolts and pads
* Toolkit box
* Operation & maintenance manual
* Two Year Parts Warranty
