Top Seller

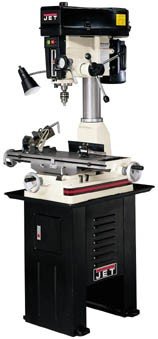

JET JMD-15 MILL/DRILL, 1 HP,
Location:
McClellan Park, CA
Model:
JMD-15
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
6283
Motor:
1HP, 115/230V,1Ph Prewired 115V
Width:
37.5 inch
Height:
35.5 inch
Length:
36.5 inch
Net weight:
370 pound
Swing (in.):
14-1/2
Stock number:
350017
Spindle taper:
R-8
Table size (in.):
7-1/2 x 23
Overall dimensions:
L 37" X W 38" X H 37"
Quill travel (in.):
3-1/2
Quill diameter (in.):
2-7/16
T-slot centers (in.):
1-13/16
Base dimensions (in.):
12-1/2 x 19-3/4
Column diameter (in.):
3-5/8
Drilling capacity (in.):
1
End mill capacity (in.):
1/2
Face mill capacity (in):
2-1/2
Number of spindle speeds:
12
Table cross travel (in.):
5-1/2
Range of spindle speeds (rpm):
110-2,580
T-slots number and size (in.):
4 and 9/16
Table longitudinal travel (in.):
14
Distance spindle to column (in.):
7-1/4
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JMD-15
Stock Number: 350017
Number of Spindle speeds: 12
Spindle Taper: R-8
Quill Diameter (in.): 2-7/16
Max Distance Spindle to Table ( in.): 15
Distance Spindle to Column (in.): 7-1/4
Table Longitudinal Travel (in.): 14
Table Cross Travel (in.): 5-1/2
T-Slots Number and Size (in.): 4 and 9/16
T-Slot Centers (in.): 1-13/16
Drilling Capacity (in.): 1
Face Mill Capacity (in): 2-1/2
End Mill Capacity (in.): 1/2
Swing (in.): 14-1/2
Column Diameter (in.): 3-5/8
Quill Travel (in.): 3-1/2
Range of Spindle Speeds (RPM): 110-2,580
Table Size (in.): 7-1/2 x 23
Base Dimensions (in.): 12-1/2 x 19-3/4
Motor: 1HP, 115/230V,1Ph Prewired 115V
Overall Dimensions: L 37" X W 38" X H 37"
Height: 35.5 inch
Width: 37.5 inch
Length: 36.5 inch
Net Weight: 370 pound
FEATURES:
* MILLING/DRILLING MACHINES
* One-piece cast iron column for added support
* Belt cover ~ quick slide latch allows faster belt
adjustment to change spindle speeds
* Base ~ taper allows for easier clean-up
* Larger hand wheel knobs
* UL Listed motor
* Extra large worktable
* Heavy-duty tapered roller bearings support the spindle,
resulting in greater tolerance and more accurate drilling
depth
* New positive quick-stop knob and easy-to-read internal
depth gauge (external on JMD-15)
* 360Degree head swivel
* Heavy-duty power downfeed with manual fine feed (JMD-
18PFN)
* Three power down feeds (JMD-18PFN .004", .007", .01")
STANDARD EQUIPMENT:
* Worklamp
* Ajustable carbide facemill
* Drill press angle vise
* 1/2" drill chuck, chuck arbor
* Draw bar
* Drill chuck guard
2-YEAR FACTORY WARRANTY INCLUDED!!
