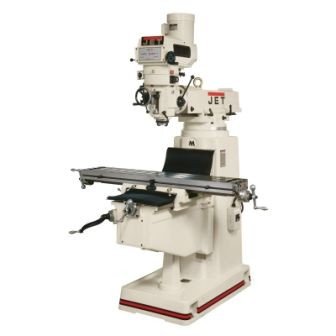

JET JTM-1055 VERTICAL VARISPD MILL,
Location:
McClellan Park, CA
Manufacturer:
JET
Model:
JTM-1055
Spindle Taper:
NST #40

Specifications

Condition:
new
Stock number:
7932
Note:
Use of static phase converter will void warranty
Motor:
5 HP, 230/460V, 3 Ph, Prewired 230V
Width:
80 inch
Height:
92 inch
Length:
108 inch
Net weight:
3300 pound
Stock number:
690055
Prewired 230v:
230V
Spindle taper:
NST #40
Collet capacity:
1/8 - 7/8
Table size (in.):
10 x 54
Overall dimensions:
108 X 80 X 92
Travel of ram (in.):
20-1/2
Head movement (deg.):
90 R & L
Quill diameter (in.):
4-1/8
T-slot centers (in.):
2-1/2
Travel of knee (in.):
17-1/2
Number of spindle speeds:
Variable
Table cross travel (in.):
16
Quill down feed rates (ipr):
0015 - .003 - .006
Range of spindle speeds (rpm):
80 - 3800
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
32
Distance spindle to column (in.):
26 (max)
Work table weight capacity (lbs.):
800
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JTM-1955
Stock Number: 690055
Motor: 5 HP, 230/460V, 3 Ph, Prewired 230V
Number of Spindle speeds: Variable
Spindle Taper: NST #40
Quill Diameter (in.): 4-1/8
Head Movement (deg.): 90 R & L
Max Distance Spindle to Table ( in.): 20
Distance Spindle to Column (in.): 26 (max)
Table Longitudinal Travel (in.): 32
Table Cross Travel (in.): 16
Collet Capacity: 1/8 - 7/8
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 800
Travel of Knee (in.): 17-1/2
Travel of Ram (in.): 20-1/2
Quill Down feed Rates (IPR): .0015 - .003 - .006
Range of Spindle Speeds (RPM): 80 - 3800
Table Size (in.): 10 x 54
Note: Use of static phase converter will void warranty
Distance Spindle to Column (min./in.): 5-1/2
Prewired 230V: 230V
Overall Dimensions: 108 X 80 X 92
Height: 92 inch
Width: 80 inch
Length: 108 inch
Net Weight: 3300 pound
FEATURES:
* Meehanite casting
* Hardened and ground table certified to be 52C Rockwell
hardness
* Chrome lead screws on X and Y axis
* Boxed style ways on Y and Z axis
* Turcite B on X and Y axis
* Satin chrome finished dials
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Auxiliary fan cools the spindle head
* Chrome plated motor shaft has lower bearing support
* Motor pulleys are ground to increase belt lift
* One piece quill pinion and shaft
* Three stage power downfeed with automatic stop
* Heavy duty spindle brake
* Locks on all movable surfaces
* Internal coolant tank built into base for use with coolant
system (coolant pump not included)
* Tolerance test sheet included
STANDARD EQUIPMENT:
* One-shot lubrication system
* Way covers
* Draw bar
