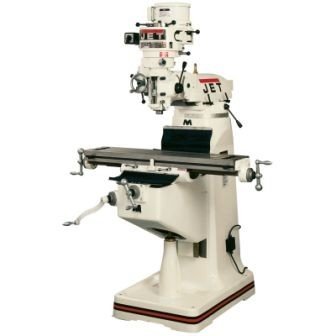

JET JTM-1 VERTICAL STEPPULLEY MILL,
Location:
McClellan Park, CA
Model:
JTM-1
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
7938
Note:
Use of static phase converter will void warranty
Motor:
2HP, 230V, 3Ph
Width:
59 inch
Height:
72 inch
Length:
69 inch
Net weight:
2056 pound
Stock number:
690082
Spindle taper:
R-8
Collet capacity:
1/8 - 7/8
Table size (in.):
9 x 42
Overall dimensions:
57 x 64 x 82
Travel of ram (in.):
13-3/8
Quill diameter (in.):
3-3/8
Spindle travel (in.):
5
T-slot centers (in.):
2-1/2
Travel of knee (in.):
14-1/2
Number of spindle speeds:
16
Table cross travel (in.):
12-1/2
Quill down feed rates (ipr):
0015- .003-.006
Range of spindle speeds (rpm):
80 - 5,440
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
23-7/8
Distance spindle to column (in.):
19
Work table weight capacity (lbs.):
550
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JTM-1
Stock Number: 690082
Motor: 2HP, 230V, 3Ph
Number of Spindle speeds: 16
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Max Distance Spindle to Table ( in.): 17-1/2
Distance Spindle to Column (in.): 19
Table Longitudinal Travel (in.): 23-7/8
Table Cross Travel (in.): 12-1/2
Collet Capacity: 1/8 - 7/8
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 550
Travel of Knee (in.): 14-1/2
Travel of Ram (in.): 13-3/8
Quill Down feed Rates (IPR): .0015- .003-.006
Range of Spindle Speeds (RPM): 80 - 5,440
Table Size (in.): 9 x 42
Note: Use of static phase converter will void warranty
Distance Spindle to Column (min./in.): 4-1/2
Spindle Travel (in.): 5
Overall Dimensions: 57 x 64 x 82
Height: 72 inch
Width: 59 inch
Length: 69 inch
Net Weight: 2056 pound
Jet's Step Pulley milling machine is the perfect solution
for maintenance shops, repair shops, job shops, schools and
light production.
FEATURES:
* VERTICAL MILLING MACHINES - JTM-1/2
* Meehanite casting
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Spindle head is internally cooled
* Satin chrome finished dials
* Heavy-duty splined motor drive
* One-piece quill pinion and shaft
* Three-stage power downfeed with automatic stop
* Heavy-duty spindle brake
* Precision hardened and ground ways
* Precision ground table
* Adjustable gibs throughout
* Internal coolant tank built into base for use with
coolant system (Coolant pump not included)
* Tolerance test sheet included
STANDARD EQUIPMENT:
* One-shot lubrication system
* Way covers
* Draw bar
* Tool box with tools
2-YEAR FACTORY WARRANTY INCLUDED!!
