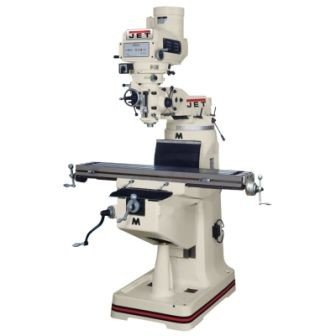

JET JTM-4VS-1 VERTICAL VARISPD MILL,
Location:
McClellan Park, CA
Model:
JTM-4VS-1
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
7936
Note:
Use of static phase converter will void warranty
Motor:
2HP, 115/230V, 1Ph, Prewired 230V
Width:
65.5 inch
Height:
88.5 inch
Length:
63 inch
Net weight:
2420 pound
Stock number:
690180
Prewired 230v:
230V
Spindle taper:
R-8
Table size (in.):
9 x 49
Overall dimensions:
65-1/2 x 63 x 85
Quill travel (in.):
5
Travel of ram (in.):
13-3/8
Head movement (deg.):
90 Deg. R & L, 45 Deg. F & B
Quill diameter (in.):
3-3/8
T-slot centers (in.):
2-1/2
Travel of knee (in.):
14-1/2
Number of spindle speeds:
Variable
Table cross travel (in.):
12
Quill down feed rates (ipr):
0015-.003-.006
Range of spindle speeds (rpm):
60-4,200
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
34 (maximum travel)
Distance spindle to column (in.):
19
Work table weight capacity (lbs.):
660
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JTM-4VS-1
Stock Number: 690180
Motor: 2HP, 115/230V, 1Ph, Prewired 230V
Number of Spindle speeds: Variable
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Head Movement (deg.): 90 Deg. R & L, 45 Deg. F & B
Max Distance Spindle to Table ( in.): 17-1/2
Distance Spindle to Column (in.): 19
Table Longitudinal Travel (in.): 34 (maximum travel)
Table Cross Travel (in.): 12
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 660
Travel of Knee (in.): 14-1/2
Travel of Ram (in.): 13-3/8
Quill Travel (in.): 5
Quill Down feed Rates (IPR): .0015-.003-.006
Range of Spindle Speeds (RPM): 60-4,200
Table Size (in.): 9 x 49
Note: Use of static phase converter will void warranty
Distance Spindle to Column (min./in.): 4-1/2
Prewired 230V: 230V
Overall Dimensions: 65-1/2 x 63 x 85
Height: 88.5 inch
Width: 65.5 inch
Length: 63 inch
Net Weight: 2420 pound
FEATURES:
* VARIABLE SPEED VERTICAL MILLING MACHINE - JTM-4VS
* Meehanite casting
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Chrome plated motor shaft with lower bearing support
* Spindle head is internally cooled
* Satin chrome finished dials
* Heavy-duty splined motor drive
* One-piece quill pinion and shaft
* Three-stage power downfeed with automatic stop
* Heavy-duty spindle brake
* Adjustable gibs throughout
* Internal coolant tank built into casting base for use
with coolant system (Coolant pump not included)
* Tolerance test sheet included
STANDARD EQUIPMENT:
* Locks on all movable surfaces
* Precision hardened and ground ways and table
* One-shot lubrication system
* Way covers
* Draw bar
* Tool box with tools
2-YEAR FACTORY WARRANTY INCLUDED!!
