Top Seller
JET JMD-18PFN MILL/DRILL W/POWER DOWNFEED,
Location:
McClellan Park, CA
Model:
JMD-18PFN
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
7941
Motor:
2HP, 1PH, 115/230V (Prewired 115V)
Width:
39.75 inch
Height:
51.5 inch
Length:
42.5 inch
Net weight:
649 pound
Swing (in.):
15-7/8
Stock number:
350020
Spindle taper:
R-8
Table size (in.):
9-1/2 x 31-3/4
Overall dimensions:
L 42" X W 40" X H 52"
Quill travel (in.):
5
Quill diameter (in.):
3
T-slot centers (in.):
1-13/16
Base dimensions (in.):
15-3/4 x 23-3/4
Column diameter (in.):
4-1/2
Drilling capacity (in.):
1-1/4
End mill capacity (in.):
3/4
Face mill capacity (in):
3
Number of spindle speeds:
12
Table cross travel (in.):
6-1/2
Range of spindle speeds (rpm):
150-3,000
T-slots number and size (in.):
4 and 5/8
Table longitudinal travel (in.):
20-1/2
Work table weight capacity (lbs.):
400
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JMD-18PFN
Stock Number: 350020
Number of Spindle speeds: 12
Spindle Taper: R-8
Quill Diameter (in.): 3
Max Distance Spindle to Table ( in.): 26
Table Longitudinal Travel (in.): 20-1/2
Table Cross Travel (in.): 6-1/2
T-Slots Number and Size (in.): 4 and 5/8
T-Slot Centers (in.): 1-13/16
Work Table Weight Capacity (lbs.): 400
Drilling Capacity (in.): 1-1/4
Face Mill Capacity (in): 3
End Mill Capacity (in.): 3/4
Swing (in.): 15-7/8
Column Diameter (in.): 4-1/2
Quill Travel (in.): 5
Quill Travel w/ Powerfeed engaged (in.): 4-1/4
Range of Spindle Speeds (RPM): 150-3,000
Table Size (in.): 9-1/2 x 31-3/4
Base Dimensions (in.): 15-3/4 x 23-3/4
Motor: 2HP, 1PH, 115/230V (Prewired 115V)
Overall Dimensions: L 42" X W 40" X H 52"
Height: 51.5 inch
Width: 39.75 inch
Length: 42.5 inch
Net Weight: 649 pound

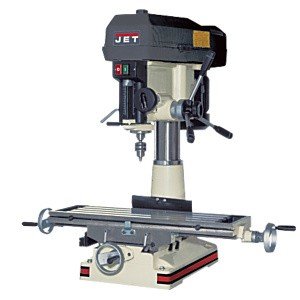

The JET JMD-18PFN Mill Drill with built in downfeed boasts a
2 HP motor on a one-piece cast iron column. The JMD comes
equipped with a worklamp, heavy-duty power downfeed with
manual line feed, adjustable carbide facemill, and also has
a UL listed motor.
FEATURES:
* MILLING/DRILLING MACHINES
* One-piece cast iron column for added support
* Belt cover "quick slide latch allows faster belt
adjustment to change spindle speeds
* Base " taper allows for easier clean-up
* Larger hand wheel knobs
* UL Listed motor
* Extra large worktable
* Heavy-duty tapered roller bearings support the spindle,
resulting in greater tolerance and more accurate drilling
depth
* New positive quick-stop knob and easy-to-read internal
depth gauge (external on JMD-15)
* 360 degree head swivel
* Heavy-duty power downfeed with manual fine feed (JMD-
18PFN)
* Three power down feeds (JMD-18PFN .004", .007", .01")
STANDARD FEATURES:
* Worklamp
* Adjustable carbide facemill
* Drill press angle vise
* 1/2" drill chuck, chuck arbor
* Draw bar
* Drill chuck guard
2-YEAR FACTORY WARRANTY INCLUDED!!
