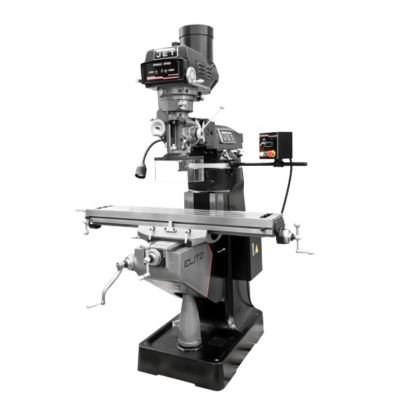

ELITE VARIABLE SPEED VERTICAL MILL
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
VARIABLE SPEED VERTICAL MILL
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
8153
Motor (hp):
3 HP, 230/460V, 3Ph Prewired 230V, CSA/UL
Stock number:
894010
Weight (lbs.):
2,200
Collet capacity:
1/8 - 7/8
Travel of ram (in.):
13-3/8
Head movement (deg.):
90 Degrees R & L 45 Degrees F & B
Quill diameter (in.):
3-3/8
Spindle travel (in.):
5
T-slot centers (in.):
2-1/2
Travel of knee (in.):
16
Number of spindle speeds:
Variable
Table cross travel (in.):
12
Table size (l x w) (in.):
9 x 49
Spindle taper (in. x tpi):
R-8
Quill down feed rates (ipr):
0.0015 - 0.003 - 0.006
Range of spindle speeds (rpm):
60 - 4500
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
36
Work table weight capacity (lbs.):
550
Max distance spindle to table (in.):
18-1/4
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: Variable Speed Mill
Stock Number: 894010
Table Size (L x W) (In.): 9 x 49
Spindle Taper (In. x TPI): R-8
Quill Diameter (In.): 3-3/8
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 60 - 4500
Quill Down Feed Rates (IPR): 0.0015 - 0.003 - 0.006
Spindle Travel (In.): 5
Head Movement (Deg.): 90 Degrees R & L 45 Degrees F & B
Max Distance Spindle to Table (In.): 18-1/4
Distance Spindle to Column (Max.) (In.): 19
Distance Spindle to Column (Min.) (In.): 6
Collet Capacity: 1/8 - 7/8
Table Longitudinal Travel (In.): 36
Table Cross Travel (In.): 12
T-Slots Number and Size (In.): 3 and 5/8
T-Slot Centers (In.): 2-1/2
Work Table Weight Capacity (Lbs.): 550
Travel of Knee (In.): 16
Travel of Ram (In.): 13-3/8
Motor (HP): 3 HP, 230/460V, 3Ph Prewired 230V, CSA/UL
Certified
Overall Dimensions (L x W x H) (In.): 68 x 63 x 84
Weight (Lbs.): 2,200
FEATURES:
* Mounted control box houses major mill functions as well as
an emergency stop button for ease of operation
* Stainless steel Y-Axis way cover prevents damage and
contamination to the precision hand scraped way
* Head moumted electronic spindle brake engages with the
slightest pressure, interrupting power to the motor
preventing accidental start-ups
* Patented copper alloy Vari-Disc key out performs standard
disc keys providing up to ten times the wear resistance
* Class 7 spindle bearings have a lower operating
temperature and increase accuracy
* Hardened and ground lead screws for added durability and
increased precision
* Double nut adjustment mechanism virtually eliminates
backlash
* Certified Meehanite castings retain their tolerances and
remain rigid through many years of machining
* Automatic lubrication every 30 minutes with a flow of
3-6cc/cy reduces maintenance
STANDARD EQUIPMENT:
* Spindle safety guard
* Halogen machine lamp
* Dual locks on all surfaces
* Toolbox with tools
* Tolerance test sheet
3-YEAR FACTORY WARRANTY INCLUDED!!
