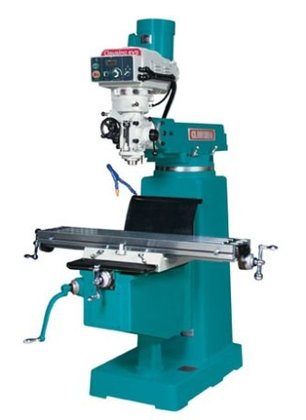

CLAUSING 3VS VERTICAL VARIABLE SPEED
Location:
McClellan Park, CA
Model:
3VS

Specifications

Condition:
new
Stock number:
8361
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: 3VS
Table & Ways
Table Size:
10" x 54" (254x1372mm)
No. of T-Slots:
3
T-Slot Width:
5/8" (16mm)
T-Slot Center Distance:
2.48" (63mm)
Table Ways:
Dovetail
Knee Ways:
Square
Column Ways:
Dovetail
Travels
X Longitudinal:
36" (915mm)
Y Cross:
15.74" (400mm)
Knee:
17.4" (450mm)
Ram:
20.5" (520mm)
Motors & Spindle
Spindle Motor:
3 hp
Amp. Draw 208v.:
10
Amp. Draw 230v.:
10
Amp. Draw 460v.:
5
Variable Spindle Speed rpm:
60-4300
Low Range rpm:
60-500
High Range rpm:
550-4300
Main Spindle Taper:
R-8 or ISO 30
ISO 40
Spindle Travel:
5" (127mm)
Quill Feed - in/rev. (mm/rev):
.0015/.0031/.006 (.004/.008/.015mm)
Quill Diameter:
3.38" (85mm)
Construction & Weight
Column Turret Diameter:
16.33" (415mm)
Knee Width:
14.17" (360mm)
Column Bearing Length:
18.11" (460mm)
Saddle/Table Bearing Length:
20.47" (520mm)
Ram/Turret Bearing Length:
17.51" (445mm)
Ram Length:
32.75" (832mm)
Table Load:
880 lbs. (400kg)
Net Weight:
2,866 lbs. (1300kg)
Dimensions
A Height:
91" (2310mm)
B Depth:
71" (1803mm)
C Width:
73.6" (1870mm)
D Table to Spindle:
1.97"-19.68" (50-500mm)
E 45 Degrees Inward:
0-18" (0-457mm)
F Spindle o to column:
5.5"-24" (140-610mm)
G 45 Degrees Outward:
10.43"-27.95" (265-710mm)
H Head Tilt:
90 Degrees right & left
STANDARD FEATURES:
* Meehanite Castings for superior rigidity and wear
resistance
* Hardened & Ground X,Y & Z Ways
* X/Y ways coated with Turcite B
* Column & Knee Way Covers
* T-slots are ground to provide reference edge for
positioning your workpiece
* Hardened & Ground Table Surface
* Hardened & Ground Spindle
* Chromed & Ground Quill
* Chromed X, Y & Z Leadscrews
* Double Nut Leadscrew for backlash compensation
* ABEC 7/CP4 Spindle Bearings
* Coolant System w/Pump & Switch
* Flexible Segmented Coolant Nozzle
* Chromed Y Screw Covers and 0ne-piece Wipers
* 7/16" Imperial Drawbar (2VS, 3VS )
* M16 Metric Drawbar w/lSO 40 Spindle (4VSQ)
* 3 hp AC Motor (2VS & 3VS)
* 5 hp AC Motor (4VSQ)
* AC Rapid Vertical Drive (4VSQ)
* Variable Speed Drive
* Articulating Head for Compound Angles
* Worm gear angular positioning of head in two directions
* Lever-operated manual rapid quill movement
* Handwheel for fine quill feed
* Adjustable automatic feed disengagement for quill feed
* Micrometer depth stop
* Reversing switch for clockwise or counter clockwise
operation
* R-8 or lSO 30 Spindle (2VS & 3VS)
* ISO 40 Spindle (4VSQ)
* Spindle Brake (Hand operated)
* One-shot lubrication
* Tool Kit, Test and Accuracy Chart
* Operations Manual/Parts List
* Knee Assist on (4VSQ)
TWO (2)-YEAR FACTORY WARRANTY INCLUDED!!
