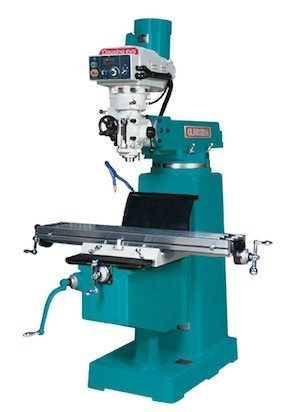

CLAUSING 450EVS VERTICAL ELECTRONIC VARI-SPD
Location:
McClellan Park, CA
Model:
450EVS

Specifications

Condition:
new
Stock number:
8364
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: 450EVS
Table:
Table Size:
10" x 54" (254 x 1372mm)
No. of T-slots:
3
T-slot width:
.63" (16mm)
T-slot center distance:
2.48" (63mm)
Travels:
X axis, longitudinal:
34.6" (879mm)
Y axis, cross:
16" (406mm)
Z axis, knee:
16" (406mm)
Ram travel:
22" (559mm)
Ram swivel:
360 Degrees
Spindle to column:
5.8"-28.9" (147 - 734mm)
Spindle nose to table:
3.54"-19.7" (90 - 500mm)
Spindle Head
Spindle drive motor:
3 hp (2.25 kw)
Spindle speed range:
50-5000 rpm
Spindle taper:
R-8 or ISO 30
Quill travel:
5" (127mm)
Quill diameter:
3.38" (83mm)
Quill feed - in/rev (mm/rev):
.00157"/.00315"/.006" (.0.04"/.08"/.152)
Head tilt (front or back):
45 Degrees
Head tilt (left or right):
90 Degrees
Dimensions and Weights:
Column turret diameter:
15.75" (400mm)
Knee width:
15.35" (390mm)
Knee bearing length:
17.72" (450mm)
Saddle length:
25.59" (650mm)
Table bearing length:
11.26" (286mm)
Ram/turret bearing length:
17.72" (450mm)
Machine weight:
2,750 lbs. (1247 kg)
Shipping weight:
3,150 lbs. (1429 kg)
A Height:
88.6"(2250mm)
B Depth w/ram travel:
78"(1980mm)
C Width w/table travel:
105"(2667mm)
D Width:
70"(1778mm)
E Base depth:
39"(990mm)
F Base width:
23.6"(600mm)
G Spindle to column:
5.9"-28.9"(150-735mm)
H Spindle to table:
3.54"-19.7"(90-500mm)
I Head tilt:
90 Degrees right or left
STANDARD FEATURES:
* Quick and accurate rpm setting
* Convenient, head mounted,easy to use control panel
* LCD spindle speed display
* Up to 4 hp spindle motor standard
* Spindle brake with auto power off
* Totally enclosed electric's with Yaskawa A.C. inverter
variable speed drive
* Carbon steel, hardened and ground, chrome plated quill
* Coolant system
* Up to 11" x 58" table size
* Meehanite castings for superior rigidity
* Hardened and ground table with 3 ground T-slots
* Double nuts for easy backlash adjustment
* Up to 38.2" X axis travel, 16" Y axis travel,17.7" knee
travel and 5" quill travel
* All ways are hardened and ground with Turcite B coating
on X and Y axis ways for wear resistance and smooth
operation
TWO (2)-YEAR FACTORY WARRANTY INCLUDED!!
