Top Seller

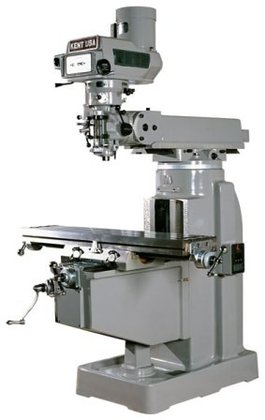

KENT KTM-3VK VARI-SPEED 10X50 MILL
Location:
McClellan Park, CA
Model:
KTM-3VK
Spindle Taper:
R8 (NMTB-30 Available)

Specifications

Condition:
new
Stock number:
2210
Ram travel:
22"
Table size:
10" X 50" (10X54 Optional)
Quill travel:
5"
Spindle motor:
3 HP (1750 RPM @ 60 HZ)
Spindle speed:
60-500-4200 (2 RANGE, HI/LOW)
Spindle taper:
R8 (NMTB-30 Available)
Quill diameter:
3.375"
Boring capacity:
6.0" Diameter
Quill feed rate:
0.0015/0.003/0.006" Per Rev
Skid dimensions:
72" X 72" X 84"H (Skid)
Milling capacity:
2.0 IN3/MIN
Power requirements:
220/440 VOLTS, 3 PH, 60 HZ, 10/5 AMP
Knee travel (z-axis):
15"
Table travel (x-axis):
35"
Saddle travel (y-axis):
15.25"
Machine weight (approx):
3100 lbs
Max. work load (center):
850 lbs
Drilling capacity (power):
0.37" Diameter
Drilling capacity (manual):
0.75" Diameter
And table power feed (installed):
*SPECIAL PRICE ON REQUEST
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: KTM-3VK Variable Speed
Table Size: 10" X 50" (10X54 Optional)
Table Travel (X-Axis): 35"
Saddle Travel (Y-Axis): 15.25"
Knee Travel (Z-Axis): 15"
Quill Travel: 5"
Ram Travel: 22"
Spindle Motor: 3 HP (1750 RPM @ 60 HZ)
Power Requirements: 220/440 VOLTS, 3 PH, 60 HZ, 10/5 AMP
Spindle Speed: 60-500-4200 (2 RANGE, HI/LOW)
Spindle Taper: R8 (NMTB-30 Available)
Quill Diameter: 3.375"
Quill Feed Rate: 0.0015/0.003/0.006" Per Rev
Drilling Capacity (Manual): 0.75" Diameter
Drilling Capacity (Power): 0.37" Diameter
Boring Capacity: 6.0" Diameter
Milling Capacity: 2.0 IN3/MIN
Max. Work Load (Center): 850 lbs.
Machine Weight (Approx): 3100 lbs.
Skid Dimensions: 72" X 72" X 84"H (Skid)
FEATURES:
* 3HP Spindle motor, variable speed head
* Table, saddle, and knee hardened & ground dovetail ways
* Precision ground leadscrews with backlash compensating
double nut
* Precision bored and ground miling head, with super
precision ABEC-7 Bearings
* Meehanite castings, with built-in coolant reservoir in
machine base
* Centralized one-shot lubrication, with metered check-
valves
OPTIONAL ACCESSORIES:
Accurite 200-M (2-Axis Dro, 0.0002" Resolution)
Table Power Feed (X-Axis)
Table Power Feed (X-Axis)
Knee Power Feed
Maxo Tprque-Rite Air Power Drawbar (USA MADE)
Flood Coolant System (Internal)
Flood Coolant SYstem (External Tank)
Riser Block (4")
Riser Block (6")
Riser Block (8")
Angle-Lock Vise (6")
Angle-Lock VIse (8")
Rotary TAble (12", Vertical & Horizontal)
Clamping Kit
R8 Collet Set (11 PC., 1/8" TO 3/4")
DRO Installation Charge
SPECIAL MILL PACKAGE PROMOTION:
KTM-3VK with Acu-Rite 200M DRO (2-axis)
and table power feed (Installed)...*SPECIAL PRICE ON REQUEST
