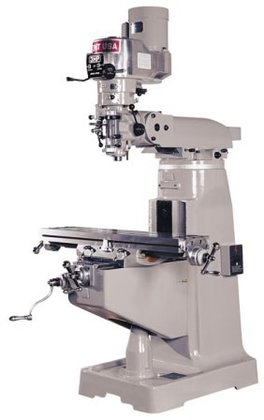

KENT KTM-3VS MANUAL VARI-SPEED 9X49
Location:
McClellan Park, CA
Model:
KTM-3VS
Spindle Taper:
R-8 (NMTB-30 optional)

Specifications

Condition:
new
Stock number:
5129
Ram travel:
14.5"
Table size:
9" x 49"
Quill travel:
5"
Spindle motor:
3 HP (1750 rpm @ 60 Hz)
Spindle speed:
60-500-4200 (2 range, Hi/Low)
Spindle taper:
R-8 (NMTB-30 optional)
Quill diameter:
3.375"
Boring capacity:
6.0" diameter
Quill feed rate:
0.0015/0.003/0.006" per rev
Shipping weight:
2500 lbs
Milling capacity:
2.0 in3/min
Power requirement:
220/440 volts, 3 Ph, 60 Hz, 10/5 Amp
Machine net weight:
2400 lbs
Shipping dimensions:
72" x 72" (skid)
Knee travel (z-axis):
15"
Table travel (x-axis):
35"
Saddle travel (y-axis):
12"
Drilling capacity (power):
0.37" diameter
Drilling capacity (manual):
0.75" diameter
Maximum work load (center):
750 lbs
Rustlick coolant (1 gallon, mixes 1:
30)
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: KTM-3VS
Table size: 9" x 49"
Table travel (X-axis): 35"
Saddle travel (Y-axis): 12"
Knee travel (Z-axis): 15"
Quill travel: 5"
Ram travel: 14.5"
Spindle motor: 3 HP (1750 rpm @ 60 Hz)
Spindle speed: 60-500-4200 (2 range, Hi/Low)
Spindle taper: R-8 (NMTB-30 optional)
Quill diameter: 3.375"
Quill feed rate: 0.0015/0.003/0.006" per rev
Drilling capacity (manual): 0.75" diameter
Drilling capacity (power): 0.37" diameter
Boring capacity: 6.0" diameter
Milling capacity: 2.0 in3/min
Maximum work load (center): 750 lbs
Machine Net weight: 2400 lbs
Shipping Weight: 2500 lbs
Shipping Dimensions: 72" x 72" (skid)
Power requirement: 220/440 volts, 3 Ph, 60 Hz, 10/5 Amp
FEATURES:
* 3HP spindle motor, variable speed head
* 9" x 49" hardened & ground table * Table, saddle, and knee
with hardened and ground dovetail ways
* Precision ground leadscrews with backlash compensating
double nut
* Precision bored & ground milling head, with super
precision ABEC-7 bearings
* Meehaniter casting, with built in coolant reservoir in
machine base
* Centralized one-shot lubrication, with metered check-
valves
OPTIONAL ACCESSORIES:
Optional 9" x 42" table
Acu-Rite 200S DRO System (2-axis, 0.0002" res. 9"x42" opt
Acu-Rite 200S DRO System (2-axis, 0.0002" res. 9"x49")
DRO installation charge
Table (x-axis) power feed
Saddle (y-axis) power feed
Knee (z-axis) power feed
Air power drawbar (Maxi-Torque, made in USA)
Flood coolant system (built-in base)
Chip tray
Right angle milling attachment with arbor support
Rustlick coolant (1 gallon, mixes 1:30)
Riser block (4")
Riser block (6")
Riser block (8")
Angle-lock vise (6")
Angle-lock vise (8") 00
Rotary table (12", vertical and horizontal)
Clamping kit (52 pc)
R-8 collet set (11 pc/set, 1/8" to 3/4")
Upgrade to 440V power on 3VSF AC-Freq drive model
NMTB-30 spindle
