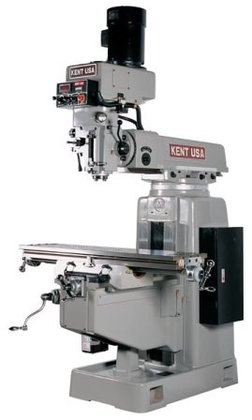

KENT KTM-5VKF-E VERTICAL KNEE MILL
Location:
McClellan Park, CA
Model:
KTM-5VKF-E
Spindle Taper:
NMTB-40

Specifications

Condition:
new
Stock number:
1727
Ram travel:
26.75"
Table size:
12" x 50"
Quill travel:
5.5"
Spindle motor:
5 HP (Inverter duty)
Spindle speed:
60-550-4500 (2 range, Hi/Low)
Spindle taper:
NMTB-40
Quill diameter:
4.173"
Boring capacity:
8.0" diameter
Quill feed rate:
0.0017/0.0032/0.0054" per rev
Milling capacity:
2.5 in3/min
Machine net weight:
3700 lbs
Power requirements:
220 volts, 3 phase, 60 Hz, 20 Amp
Knee travel (z-axis):
17.5"
Table travel (x-axis):
33"
Saddle travel (y-axis):
18"
Drilling capacity (power):
0.625" diameter
Shipping weight/dimension:
3800 lbs, 72" X 72" (skid)
Drilling capacity (manual):
1.25" diameter
Maximum work load (center):
850 lbs
Rustlick coolant (1 gallon, mixes 1:
30)
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: KTM-5VKF-E
Table size: 12" x 50"
Table travel (X-axis): 33"
Saddle travel (Y-axis): 18"
Knee travel (Z-axis): 17.5"
Quill travel: 5.5"
Ram travel: 26.75"
Spindle motor: 5 HP (Inverter duty)
Spindle speed: 60-550-4500 (2 range, Hi/Low)
Spindle taper: NMTB-40
Quill diameter: 4.173"
Quill feed rate: 0.0017/0.0032/0.0054" per rev
Drilling capacity (manual): 1.25" diameter
Drilling capacity (power): 0.625" diameter
Boring capacity: 8.0" diameter
Milling capacity: 2.5 in3/min
Maximum work load (center): 850 lbs
Machine Net weight: 3700 lbs
Shipping Weight/Dimension: 3800 lbs, 72" X 72" (skid)
Power Requirements: 220 volts, 3 phase, 60 Hz, 20 Amp
(optional 440v requires 10 Amp) AC-Frequency drive can
accept 220v, 1-phase power (25A) without a phase converter,
ideal for customers with only 1-phase power
FEATURES:
* 5 HP spindle motor, variable speed milling head with AC-
Freq drive head, digital RPM display and load meter
* 12" x 50" hardened and ground table top
* T-slots ground parallel to table ways
* Saddle and knee with hardened and ground square (box) ways
* Precision ground leadscrews with backlash compensating
double nut
* Precision bored&ground milling head, with super precision
ABEC-7 bearings
* Meehaniter casting, with built in coolant reservoir in
machine base
* Centralized one-shot lubrication, with metered check-
valves
OPTIONAL ACCESSORIES:
Acu-Rite 200S DRO (2-axis, 0.0002" resolution)
DRO installation charge
Table (x-axis) power feed
Saddle (y-axis) power feed
Knee (z-axis) power feed
Air power drawbar (Maxi-Torque, made in USA)
Flood coolant system (internal)
Rustlick coolant (1 gallon, mixes 1:30)
Chip Pan
Riser block (6")
Riser block (8")
Angle-lock vise (6")
Angle-lock vise (8")
Rotary table (12", vertical and horizontal)
Clamping kit (52 pc)
ER-40 Collet chuck system (15 pc)
Upgrade to 440V power
