Top Seller

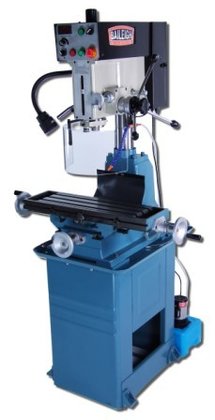

BAILEIGH VMD-30VS VERTICAL MILL DRILL
Location:
McClellan Park, CA
Model:
VMD-30VS
Spindle Taper:
R8

Specifications

Condition:
new
Stock number:
7711
Power:
220V Single Phase
T slots:
625"
Table size:
28.75" x 8.25"
Motor coolant:
1/8 hp
Spindle speed:
150-2500 RPM
Spindle taper:
R8
X axis travel:
14.5"
Y axis travel:
6.67"
Drill capacity:
1.125"
Spindle travel:
5.9"
Shipping weight:
616 lbs
Tapping capacity:
625"
Shipping dimensions:
36" x 30" x 47"
Spindle nose to table:
19.7"
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: VMD-30VS
Table Size: 28.75" x 8.25"
X Axis Travel: 14.5"
Y Axis Travel: 6.67"
Spindle Nose to Table: 19.7"
Spindle Speed: 150-2500 RPM
Spindle Taper: R8
Tapping Capacity: .625"
T Slots: .625"
Motor Coolant: 1/8 hp
Power: 220V Single Phase
Shipping Weight: 616 lbs.
Drill Capacity: 1.125"
Spindle Travel: 5.9"
Shipping Dimensions: 36" x 30" x 47"
DESCRIPTION:
When combining two different functions into one machine, the
designer has to be careful to not lose the best functions of
the original machines. Baileigh Industrial's VMD-30VS mill
drill is a perfect example of that. They took the popular
DP-1250VS drill press and mated it with a 29" x 8" milling
table. The result is nothing more than remarkable. This
may be the perfect mill drill for any fabrication shop or
school looking to save space yet not skimp on features.
The VMD-30VS is an inverter driven variable speed mill drill
that runs on 220 volts of single phase power. The Deltar
inverter allows the VMD-30VS to turn at speeds from 0 to
2500 rpm. Being able to infinitely adjust tooling speed is
important to prolong tooling life and save money.
In order to strengthen the VMD-30VS to be able to handle the
stresses of milling, the column from the DP-1250VS was
shortened and a full cast iron base was put in its place.
The whole assembly then sits on top of a full metal base
that integrates a flood coolant system to further gain tool
life
