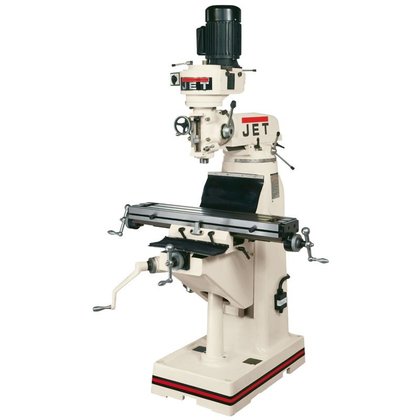

JET JVM-836-1 VERTICAL STEPPULLEY MILL,
Location:
McClellan Park, CA
Model:
JVM-836-1
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
7924
Motor:
1-1/2HP, 115/230V, 1 Phase
Net weight:
1617 pounds
Stock number:
690036
Spindle taper:
R-8
Collet capacity:
1/8-7/8
Table size (in.):
7-7/8 x 35-3/4
Overall dimensions:
55 x 52 x 78
Quill travel (in.):
5
Travel of ram (in.):
10-1/2
Head movement (deg.):
90 Deg. R & L
Quill diameter (in.):
3-3/8
T-slot centers (in.):
2-1/2
Travel of knee (in.):
14
Number of spindle speeds:
5
Table cross travel (in.):
9-1/2
Range of spindle speeds (rpm):
240-1,550
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
22-1/4
Distance spindle to column (in.):
15-3/4
Work table weight capacity (lbs.):
500
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JVM-836-1
Stock Number: 690036
Motor: 1-1/2HP, 115/230V, 1 Phase
Number of Spindle speeds: 5
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Head Movement (deg.): 90 Deg. R & L
Max Distance Spindle to Table ( in.): 13-3/4
Distance Spindle to Column (in.): 15-3/4
Table Longitudinal Travel (in.): 22-1/4
Table Cross Travel (in.): 9-1/2
Collet Capacity: 1/8-7/8
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 500
Travel of Knee (in.): 14
Travel of Ram (in.): 10-1/2
Quill Travel (in.): 5
Range of Spindle Speeds (RPM): 240-1,550
Table Size (in.): 7-7/8 x 35-3/4
Distance Spindle to Column (min./in.): 5-1/4
Overall Dimensions: 55 x 52 x 78
Net Weight: 1617 pounds
FEATURES:
* VERTICAL MILLING MACHINE - JVM-836-1/3
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision spindle bearings
* Over 10" of front to back ram travel
* Locks on all movable surfaces
* Hardened and ground precision table
* Head tilts left or right
* Graduated scale on column
* Precision ground dovetail ways
* One-shot lubrication system
* Way Covers
* Draw bar
* Tool box and tools
* This small mill has all of the Feature found on our
larger mills, but sized for the home shop, repair shops or
small maintenance shops.
STANDARD EQIPMENT:
* One-shot lubrication system
* Way Covers
* Draw bar
* Tool box and tools
2-YEAR FACTORY WARRANTY INCLUDED!!
