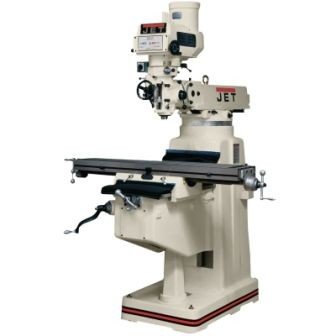

JET JTM-1050 VERTICAL VARISPD MILL,
Location:
McClellan Park, CA
Model:
JTM-1050
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
7935
Note:
Use of static phase converter will void warranty
Motor:
3 HP, 230/460V, 3Ph, Prewired 230V
Width:
78 inch
Height:
87 inch
Length:
95 inch
Net weight:
2751 pound
Stock number:
690050
Spindle taper:
R-8
Table size (in.):
10 x 50
Overall dimensions:
95-3/4 x 68-3/4 x 87
Quill travel (in.):
5
Travel of ram (in.):
20-1/2
Head movement (deg.):
90 Deg. R & L, 45 Deg. F & B
Quill diameter (in.):
3-3/8
T-slot centers (in.):
2-1/2
Travel of knee (in.):
14-1/4
Number of spindle speeds:
Variable
Table cross travel (in.):
15-1/4
Quill down feed rates (ipr):
0015-.003-.006
Range of spindle speeds (rpm):
70-3,800
T-slots number and size (in.):
3 and 5/8
Table longitudinal travel (in.):
30
Distance spindle to column (in.):
26
Work table weight capacity (lbs.):
720
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: JTM-1050
Stock Number: 690050
Motor: 3 HP, 230/460V, 3Ph, Prewired 230V
Number of Spindle speeds: Variable
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Head Movement (deg.): 90 Deg. R & L, 45 Deg. F & B
Max Distance Spindle to Table ( in.): 19
Distance Spindle to Column (in.): 26
Table Longitudinal Travel (in.): 30
Table Cross Travel (in.): 15-1/4
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 720
Travel of Knee (in.): 14-1/4
Travel of Ram (in.): 20-1/2
Quill Travel (in.): 5
Quill Down feed Rates (IPR): .0015-.003-.006
Range of Spindle Speeds (RPM): 70-3,800
Table Size (in.): 10 x 50
Note: Use of static phase converter will void warranty
Distance Spindle to Column (min./in.): 5-1/2
Overall Dimensions: 95-3/4 x 68-3/4 x 87
Height: 87 inch
Width: 78 inch
Length: 95 inch
Net Weight: 2751 pound
FEATURES:
* VARIABLE SPEED VERTICAL MILLING MACHINE - JTM-1050
* Meehanite casting
* Hardened and ground table
* Chrome lead screws on X and Y axis
* Turcite B on X and Y axis
* Satin chrome finished dials
* Precision bored and honed milling head
* Large diameter quill is chromed
* High precision Class 7 spindle bearings
* Spindle head is internally cooled
* No Fuse breaker power connection
* Heavy-duty motor drive
* Chrome plated motor shaft with bearing support at end
* One-piece quill pinion and shaft
* Three-stage power downfeed with automatic stop
* Heavy-duty spindle brake
* Locks on all movable surfaces
* Hardened and ground square vertical knee ways and cross
ways
* Adjustable gibs throughout
* Internal coolant tank built into base for use with
coolant system (Coolant pump not included)
* Tolerance test sheet included
STANDARD EQUIPMENT:
* One-shot lubrication system
* Way covers
* Draw bar
* Tool box with tools
2-YEAR FACTORY WARRANTY INCLUDED!!
