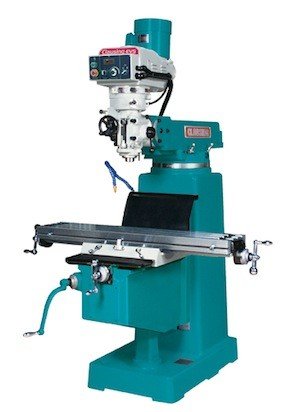

CLAUSING 500EVS VERTICAL ELECTRONIC VARI-SPD
Location:
McClellan Park, CA
Model:
500EVS

Specifications

Condition:
new
Stock number:
8365
Subcategory:
Vertical mill
Subcategory 2:
Milling machines

Description

Model: 500EVS
Table
Table Size:
11" x 58" (254 x 11473mm)
No. of T-slots:
3
T-slot width:
63" (16mm)
T-slot center distance:
2.48" (63mm)
Travels
X axis, longitudinal:
38.2" (970mm)
Y axis, cross:
16" (406mm)
Z axis, knee:
17.7" (450mm)
Ram travel:
22" (559mm)
Ram swivel:
360 Degrees
Spindle to column:
5.3"-27.2" (135 - 691mm)
Spindle nose to table:
1.57"-19.2" (40 - 489mm)
Spindle Head:
Spindle drive motor:
4 hp (3 kw)
Spindle speed range:
50-5000 rpm
Spindle taper:
R-8 or ISO 30
Quill travel:
5" (127mm)
Quill diameter:
3.38" (83mm)
Quill feed - in/rev (mm/rev):
.00157"/.00315"/.006" (.0.04"/.08"/.152)
Head tilt (front or back):
45 Degrees
Head tilt (left or right):
90 Degrees
Dimensions and Weights:
Column turret diameter:
16.54" (420mm)
Knee width:
15.35" (390mm)
Knee bearing length:
19.69" (500mm)
Saddle length:
25.59" (650mm)
Table bearing length:
11.02" (280mm)
Ram/turret bearing length:
17.72" (450mm)
Machine weight:
3,300 lbs. (1497 kg)
Shipping weight:
3,700 lbs. (1678 kg)
A Height:
90.6"(2300mm)
B Depth w/ram travel:
82.7"(2100mm)
C Width w/table travel:
110"(2795mm)
D Width:
74" (1880mm)
E Base depth:
44"(1118mm)
F Base width:
25"(635mm)
G Spindle to column:
5.3"-27.2"(135-690mm)
H Spindle to table:
1.57"-19.2"(40-488mm)
I Head tilt:
90 Degrees right or left
STANDARD FEATURES:
* Quick and accurate rpm setting
* Convenient, head mounted,easy to use control panel
* LCD spindle speed display
* Up to 4 hp spindle motor standard
* Spindle brake with auto power off
* Totally enclosed electric's with Yaskawa A.C. inverter
variable speed drive
* Carbon steel, hardened and ground, chrome plated quill
* Coolant system
* Up to 11" x 58" table size
* Meehanite castings for superior rigidity
* Hardened and ground table with 3 ground T-slots
* Double nuts for easy backlash adjustment
* Up to 38.2" X axis travel, 16" Y axis travel,17.7" knee
travel and 5" quill travel
* All ways are hardened and ground with Turcite B coating
on X and Y axis ways for wear resistance and smooth
operation
TWO (2)-YEAR FACTORY WARRANTY INCLUDED!!
