Top Seller

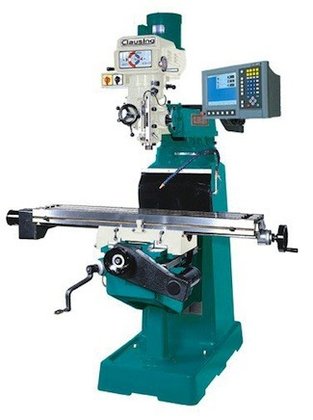

CLAUSING 3VSCNC 3-AXIS CNC KNEE
Location:
McClellan Park, CA
Model:
3VSCNC
Spindle Taper:
R8 or ISO-30

Specifications

Condition:
new
Stock number:
7679
Motor:
3 HP
Knee ways:
Dovetail
Knee width:
11.8"
Net weight:
2,250 lbs
Ram length:
32.75"
Ram travel:
20.5"
Table load:
700 lbs
Table size:
9" x 49"
Table ways:
Dovetail
Column ways:
Dovetail
Knee travel:
16"
T-slot width:
63"
No. of t-slots:
3
Quill diameter:
3.38"
Spindle speeds:
Variable
Spindle travel:
5"
Y cross travel:
11.5"
Main spindle taper:
R8 or ISO-30
Column bearing length:
16.9"
X longitudinal travel:
30"
Column turret diameter:
14.9"
T-slot center distance:
2.48"
Flexible operating modes:
Manual operation with DRO
Ram/turret bearing length:
17.51"
Saddle/table bearing length:
19.8"
Two range variable speed spindle:
60-500 rpm low range
Subcategory:
Milling machines

Description

Model: 3VSCNC
Table Size: 9" x 49"
No. of T-slots: 3
T-slot Width: .63"
T-slot Center Distance: 2.48"
Table Ways: Dovetail
Knee Ways: Dovetail
Column Ways: Dovetail
X Longitudinal Travel: 30"
Y Cross Travel: 11.5"
Knee Travel: 16"
Ram Travel: 20.5"
Motor: 3 HP
Spindle Speeds: Variable
Low range spindle speeds: 60-500, high range: 550-4300
Main Spindle Taper: R8 or ISO-30
Spindle Travel: 5"
Quill Diameter: 3.38"
Column Turret Diameter: 14.9"
Knee Width: 11.8"
Column Bearing Length: 16.9"
Saddle/Table Bearing Length: 19.8"
Ram/Turret Bearing Length: 17.51"
Ram Length: 32.75"
Table Load: 700 lbs.
Net Weight: 2,250 lbs.
FEATURES:
* A wide range of CNC Control options ACU-RITE MILLPWR,
Fagor 8055i MC, ANILAM 3000M and ANILAM 5000M
* Flexible operating modes: Manual operation with DRO,
Semi-automatic operation, and two or three axes full CNC
operation
* Meehanite Castings for superior rigidity and wear
resistance
* Hardened and Ground X, Y, and Knee ways for superior
accuracy and wear resistance
* Turcite B applied to X, Y ways for wear resistance and
extend machine life
* Work areas up to 10" x 54" table size
* Ground T-Slots provide a reference edge for positioning
workpieces or fixtures
* Large travel range up to 33" X axis travel, 16" Y axis
travel, 17.7" knee travel and 5" quill travel
* Two Range Variable Speed Spindle: 60-500 rpm low range
and 550-4300 high range
* 3 Hp Spindle Motor for exceptional machining power
* Spindle Brake manually operated with auto power off
* ABEC 7/CP4 Spindle Bearings provide accuracy and smooth
operation for close tolerance machining
* Hardened and Ground Chrome Plated, Carbon Steel Quill
giving the quill wear resistance with close tolerances
between the quill and housing
* One Shot Lubrication maintains proper lubrication to all
critical machine components
* Built in Coolant System w/pump, switch, and flexible
coolant nozzle
* Precision Hardened and Ground Ballscrews for smooth
positioning and accuracy
