Top Seller

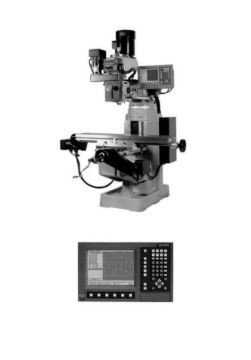

KENT KTM-3VKF 3-AXIS ACCURITE MILLPOWER,
Location:
McClellan Park, CA
Model:
KTM-3VKF
Spindle Taper:
R-8 (NMTB-30 or Quick change spindle

Specifications

Condition:
new
Stock number:
2845
Chip tray:
$400.00
Ram travel:
22"
Table size:
50" x 10"
Knee travel:
15"
Quill travel:
5" (4" w/ MillPwr-3 cnc control)
Table travel:
36" (32" w/ cnc control)
Overall depth:
79"
Overall width:
102"
Saddle travel:
15.25" (14" w/ cnc control)
Spindle motor:
3HP (inverter-duty)
Spindle taper:
R-8 (NMTB-30 or Quick change spindle
4" riser block:
$500.00
6" riser block:
$500.00
8" riser block:
$600.00
Overall height:
90"
Quill diameter:
3.375"
Spindle speeds:
60-550-4500 RPM (60-6000 on HS head
Table to floor:
34" - 49"
3-d edge finder:
$350.00
Nmtb-30 spindle:
$800.00
Maximum workload:
850 lbs (Centered)
Spindle to table:
2.75" - 17.75"
Spindle to column:
5" - 27"
Net weight (approx):
3100 lbs
Knee (z-axis) power feed:
$550.00
440v power instead of 220v:
$200.00
On site start up training (2-day):
$2,500.00
Subcategory:
Milling machines

Description

Model: KTM-3VKF (MillPwr - 3 Axis)
Table Size: 50" x 10"
Table Travel: 36" (32" w/ cnc control)
Saddle Travel: 15.25" (14" w/ cnc control)
Knee Travel: 15"
Ram Travel: 22"
Quill Travel: 5" (4" w/ MillPwr-3 cnc control)
Quill Diameter: 3.375"
Spindle Motor: 3HP (inverter-duty)
Spindle Taper: R-8 (NMTB-30 or Quick change spindle
optional)
Spindle Speeds: 60-550-4500 RPM (60-6000 on HS head
optional)
Overall Width: 102"
Overall Depth: 79"
Overall Height: 90"
Table to Floor: 34" - 49"
Spindle to Table: 2.75" - 17.75"
Spindle to Column: 5" - 27"
Maximum Workload: 850 lbs (Centered)
Net Weight (approx): 3100 lbs
Power Requirements:
220V 3-phase or 1-phase for machine, 10Amps (15A for 1-
phase)
Optional 440v requires 3-phase, 7.5Amps
110V dedicated for CNC control, 20Amps
Shipping Dimensions & Weight:
6' x 6' skid, 3300 lbs.
FEATURES:
* 3 HP AC-Freq drive head with digital RPM display and
analog load meter
* 60-550-4500 spindle RPM (Hi/Low gear)
* Automatic centralized lubrication system with metered
check-valves
* Single-phase or 3-phase power without the need for a phase
converter
* Hardened and Ground (Hrc-52) table surface and all slide
ways
* Easy conversational programming, DRO-mode allows for full
manual operations
* Engraving feature and DXF file import capability built-in,
3.5" floppy drive and 10" flat panel color LCD display
MACHINE OPTIONS:
Quick change tooling package (Mach-1): $1,450.00
NMTB-30 spindle: $800.00
Air power drawbar (Maxi-Torque, made in USA): $750.00
Chip tray: $400.00
Flood coolant system (Built-in base): $500.00
4" Riser block: $500.00
6" Riser block: $500.00
8" Riser block: $600.00
Knee (z-axis) power feed: $550.00
High-Speed (HS) 6000 RPM spindle (single gear) option:
$900.00
XL version with 10x54 size table instead of 10x50 table:
$700.00
440V Power instead of 220V: $200.00
CNC CONTROL OPTIONS:
3-D Edge finder: $350.00
Knee Linear encoder feedback for coupled Z-axis position:
$1,200.00
AMI with programmable spindle on/off and M-functions:
$1,000.00
On site start up training (2-day): $2,500.00
(requires 1 to 2 weeks lead time for travel arrangements)
AC-Freq drive head - a better way:
AC-Freq drive models vary spindle rpm by changing the
frequency (Hz) of the power to the motor by electronic means
via a frequency inverter. No more sliding vari-disc with
plastic inserts means a more reliable milling head with less
maintenance issues. Runs quieter and smoother than standard
conventional mechanical sliding pulley drive systems. Three
phase power or single phase power. No need for a phase
converter - great for the shop or at home.
ACU-RITE MILLPOWER CNC:
OUTSTANDING FEATURES:
*Easy to use, menu prompted, conversational format
*3D tactile-feel color keypad
*10" flat panel LCD color display
*3" floppy disk drive
*Remote stop/go switch
*Close loop feedback using precision linear glass scales
with absolute encoder Position-Trac technology
*Precision hardened and ground ballscrews
*Direct DXF file input capability
*Alphanumeric en
