Top Seller

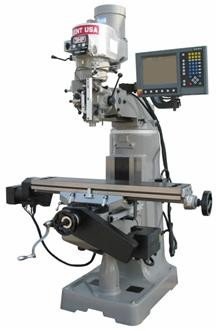

KENT KTM-3VS 3-AXIS ACCURITE MILLPOWER
Location:
McClellan Park, CA
Model:
KTM-3VS
Spindle Taper:
R-8 (NMTB-30 or Quick change spindle

Specifications

Condition:
new
Stock number:
5440
Chip tray:
$400.00
Ram travel:
14.5"
Table size:
42" x 9"
Knee travel:
15"
Quill travel:
5" (4" w/ MillPwr-3 CNC Control)
Table travel:
28" (24" w/ CNC Control)
Overall depth:
67"
Overall width:
86" (98" CNC Control)
Saddle travel:
12" (11" w/ CNC Control)
Spindle motor:
3HP
Spindle taper:
R-8 (NMTB-30 or Quick change spindle
6" riser block:
$500.00
8" riser block:
$600.00
9" x 42" table:
$200.00
Overall height:
84"
Quill diameter:
3.375"
Spindle speeds:
60-550-4200 RPM (Standard Variable Speed
Table to floor:
33" - 48"
3-d edge finder:
$350.00
Nmtb-30 spindle:
$800.00
Maximum workload:
850 lbs (Centered)
Spindle to table:
18.25"
Spindle to column:
5" - 19.5"
Net weight (approx):
2500 lbs
Knee (z-axis) power feed:
$550.00
Ami with programmable m-functions:
$1,000.00
On site start up training (2-day):
$2,500.00
Subcategory:
Milling machines

Description

Model: KTM3VS 3-AXIS
Table Size: 42" x 9"
Table Travel: 28" (24" w/ CNC Control)
Saddle Travel: 12" (11" w/ CNC Control)
Knee Travel: 15"
Ram Travel: 14.5"
Quill Travel: 5" (4" w/ MillPwr-3 CNC Control)
Quill Diameter: 3.375"
Spindle Motor: 3HP
Spindle Taper: R-8 (NMTB-30 or Quick change spindle
optional)
Spindle Speeds: 60-550-4200 RPM (Standard Variable Speed
Model)
Overall Width: 86" (98" CNC Control)
Overall Depth: 67"
Overall Height: 84"
Table to Floor: 33" - 48"
Spindle to Table: 18.25"
Spindle to Column: 5" - 19.5"
Maximum Workload: 850 lbs (Centered)
Net Weight (approx): 2500 lbs
Power Requirements (Standard variable speed head 3VS):
220V/440V 3-phase power, 20A/10A
110V dedicated for CNC control, 20A
Shipping Dimensions & Weight:
6' x 6' skid, 3300 lbs.
FEATURES:
* 3 HP variable speed head
* 60-550-4200 spindle RPM
* Optional AC-Freq inverter head model available (single-
phase or 3-phase capable, large digital spindle rpm display
with real-time load meter)
* Automatic centralized lubrication system with metered
check-valves
* Hardened and Ground (Hrc-52) table surface and all slide
ways
* Easy conversational programming, DRO-mode allows for full
manual operations
* Engraving feature and DXF file import capability built-in,
3.5" floppy drive and 10" flat panel color LCD display
MACHINE OPTIONS:
Quick change tooling package (Mach-1): $1,450.00
NMTB-30 spindle: $800.00
Air power drawbar (Maxi-Torque, made in USA): $750.00
Chip tray: $400.00
Flood coolant system (Built-in base): $500.00
9" x 42" table: $200.00
6" Riser block: $500.00
8" Riser block: $600.00
Knee (z-axis) power feed: $550.00
Upgrade to AC-Frequency inverter head (3VSF model):
$1600.00
High-Speed (HS) 6000 RPM spindle (single gear) option:
$2500.00
CNC CONTROL OPTIONS:
3-D Edge finder: $350.00
Knee Linear encoder feedback for coupled Z-axis position:
$1200.00
AMI with programmable M-functions: $1,000.00
On site start up training (2-day): $2,500.00
(requires 1 to 2 weeks lead time for travel arrangements)
AC-Freq drive head - a better way:
AC-Freq drive models vary spindle rpm by changing the
frequency (Hz) of the power to the motor by electronic means
via a frequency inverter. No more sliding vari-disc with
plastic inserts means a more reliable milling head with less
maintenance issues. Runs quieter and smoother than standard
conventional mechanical sliding pulley drive systems. Three
phase power or single phase power. No need for a phase
converter - great for the shop or at home.
Did you know?
In IMTS-1992, Kent show case the first AC-Freq drive head on
a knee mill to the general machine tool public. This caught
our competitors by surprise and generated a lot of interest -
well actually more from our competitors than shop users at
the time. We are the first to put in a digital rpm display
for easy and precise spindle speed adjustment. We are the
first to put in an analog spindle load meter. Today, we
lead this field with the highest performance AC-Freq drive
head on the mark
