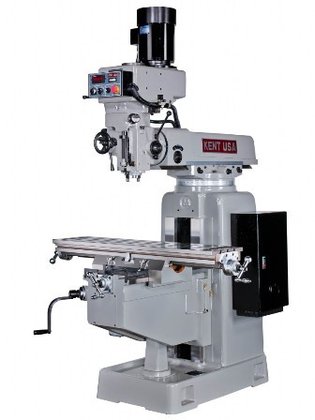

KENT KTM-5VKF CNC MILL, 3-AXIS
Location:
McClellan Park, CA
Model:
KTM-5VKF
Spindle Taper:
NMTB-40

Specifications

Condition:
new
Stock number:
7615
Ram travel:
26.75"
Table size:
12" x 50"
Quill travel:
5.5" (4" w/ MillPwr-3 CNC control)
Spindle motor:
5 HP (Inverter-duty)
Spindle speed:
60-550-4500 RPM (60-6000* on HS head
Spindle taper:
NMTB-40
Quill diameter:
4.173"
Boring capacity:
8" Diameter
Quill feed rate:
0.0017/0.0032/0.0054 ipr
Shipping weight:
4100 LBS
Milling capacity:
2.5 in3/min
Machine net weight:
3700 LBS
Power requirements:
220 volts, 3 phase, 60 Hz, 17 Amp
Shipping dimension:
72" x 72"
Knee travel (z-axis):
15.5"
Table travel (x-axis):
33" (30" w/ cnc control)
Saddle travel (y-axis):
16" (15" w/ cnc control)
Spindle center to column:
5.25" - 32"
Drilling capacity (power):
0.625" Diameter
Drilling capacity (manual):
1.25" Diameter
Maximum work load (center):
850 LBS
Spindle nose to table surface:
4" - 19.5"
Subcategory:
Milling machines

Description

Model: KTM-5VKF
Table Size: 12" x 50"
Table Travel (X-Axis): 33" (30" w/ cnc control)
Saddle Travel (Y-Axis): 16" (15" w/ cnc control)
Knee Travel (Z-Axis): 15.5"
T Slots: -
X, Y Axes Feedrate: -
X, Y Axes Rapid: -
Z Axis Rapid: -
Quill Travel: 5.5" (4" w/ MillPwr-3 CNC control)
Ram Travel: 26.75"
Spindle Motor: 5 HP (Inverter-duty)
Spindle Speed: 60-550-4500 RPM (60-6000* on HS head
optional)
Spindle Taper: NMTB-40
Quill Diameter: 4.173"
Quill Feed Rate: 0.0017/0.0032/0.0054 ipr
Drilling Capacity (Manual): 1.25" Diameter
Drilling Capacity (Power): 0.625" Diameter
Boring Capacity: 8" Diameter
Milling Capacity: 2.5 in3/min
Maximum Work Load (Center): 850 LBS
Spindle Nose to Table Surface: 4" - 19.5"
Spindle Center to Column: 5.25" - 32"
Machine Net Weight: 3700 LBS
Shipping Weight: 4100 LBS
Shipping Dimension: 72" x 72"
Power Requirements: 220 volts, 3 phase, 60 Hz, 17 Amp
(optional 440v, requires 8.5 Amp)Can run on single phase
power
FEATURES:
* 5 HP AC-Freq drive head with digital RPM display and
analog load meter
* 60-550-4500 spindle RPM (Hi/Low gear). Automatic
spindle direction reversal when switching between high and
low speed gear ranges
* NMTB-40 spindle taper
* Automatic centralized lubrication system with
metered check-valves
* Single-phase or 3-phase power without the need for a
phase converter
* Hardened and Ground (Hrc-52) table surface and all
slide ways
* Solid box ways on saddle and column
OPTIONAL ACCESSORIES:
Quick change tooling package (Mach-1)
NMTB-30 spindle
Flood coolant system (Built-in base)
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
3-D Edge Finder
Knee Linear Encoder Feedback for Coupled Z-Axis Position
AMI with programmable M-functions
