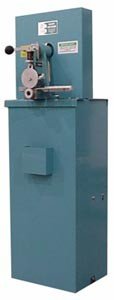

RUOFF AUTOMATIC POWER NOTCHER 16
Location:
McClellan Park, CA
Manufacturer:
RUOFF
Model:
AUTOMATIC POWER NOTCHER
Weight:
120 lbs

Specifications

Condition:
new
Stock number:
3814
Motor:
3/4 HP, 115/230 VOLT
Speed:
On Automatic feed, the Ruoff can make 240 notches a
Simplicity:
By a simple adjustment the depth of notches can
Flexibility:
The Ruoff notcher handles all types of flat
Approx. weight:
120 lbs
Approx. dimensions:
18"W X 12"D X 50"H
Subcategory:
Notchers

Description

Model: Ruoff Power Notcher
Capacity:
Up to 16 ga. Mild Steel
20 ga. Stainless
Speed:
From 20 Ft Per Min and Up...
240 Punches Per MInute
Adjustment:
Centers of Notches Are Adjustable
Up to 1-1/8" Max.
Depth of Notch is Adjustable
Up to 7/8" Max.
Motor: 3/4 HP, 115/230 VOLT
Approx. Weight: 120 lbs.
Approx. Dimensions: 18"W X 12"D X 50"H
EQUIPPED WITH EITHER V-DIES OR SLOT-DIES.
SPEED: On Automatic feed, the Ruoff can make 240 notches a
minute. Conservatively estimated, this is 20 times as fast
as hand notching.
SIMPLICITY: By a simple adjustment the depth of notches can
be regulated from 1/8" up to 7/8". Space adjustment is just
as easy.
DISTANCE BETWEEN NOTCHES CAN BE ADJUSTED FROM 5/16" TO 1-
1/8".
FLEXIBILITY: The Ruoff notcher handles all types of flat
materials without adjustment. Standard male & female dies
provide a 15 degree notch. Other Patterns are available.
