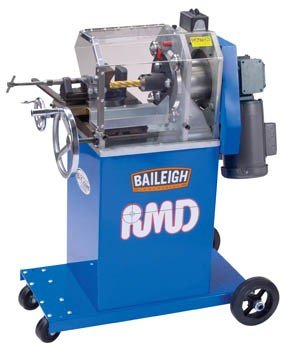

BAILEIGH TN-800 ABRASIVE BELT NOTCHER,
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Capacity:
5" (Optional) - 3"
Weight:
540 lbs

Specifications

Condition:
new
Stock number:
4799
Motor:
1 hp
Power:
110V
Mill speed:
177 rpm
End mill size:
1" Standard / 1/2" Optional
Shipping weight:
540 lbs
Angle adjustment:
0 - 60
Shipping dimensions:
66" x 44" x 60"
Notching capacity (od):
5" (Optional) - 3"
Subcategory:
Notchers

Description

Model: TN-800
Motor: 1 hp
Mill Speed: 177 rpm
Notching Capacity (OD): .5" (Optional) - 3"
Angle Adjustment: 0 - 60
End Mill Size: 1" Standard / 1/2" Optional
Power: 110V
Shipping Weight: 540 lbs.
Shipping Dimensions: 66" x 44" x 60"
DESCRIPTION:
If you are a shop that wants the best in tube and pipe
equipment, then you have to look at the TN-800 tube and pipe
notcher from Baileigh industrial. This patented (patent No:
6,435,783) design does what no other notch on the market can
do; notch tube form 1" to 3" OD without having to change
tooling, hole saws or mandrels. The secret is in the
eccentric path that the cutter takes as it is notching the
tube. This end mill style notcher uses a very unique design
where the operator dials in the OD that they wish to notch
to and the tube notcher will change its eccentric path and
produce a perfect notch. This patented feature saves the
fabricator thousands of dollars every year in tooling costs.
No other end mill notcher has this profitable feature.
The TN-800 is also built to last here in the USA using heavy
duty cast iron for the main framework. This design reduces
vibration and gives better results. The vise on the TN-800
is also as unique as the machine itself. It is adjustable
in just about every way possible and features x and y axis
to ensure good cutting position.
The TN-800 tube and pipe notcher operates on 110 volt power
so it can be run almost anywhere, including in the field.
The TN-800 also has a portable cart that has wheels so that
when it is not in use it can be rolled out of the way.
