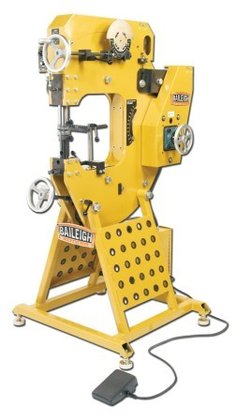

BAILEIGH MH-19 POWER HAMMER in
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
MH-19
Capacity:
12 gauge
Weight:
1,600 lbs

Specifications

Condition:
new
Stock number:
5872
Power:
220V / 1-phase
Speed:
0 - 1500 beats / minute
Throat depth:
19"
Shipping weight:
1,600 lbs
Aluminum capacity:
12 gauge
Mild steel capacity:
16 gauge
Shipping dimensions:
60" x 60" x 84"
Length of stroke adj:
177" - .550"
Capacity (mild steel):
16 gauge
Tooling height adjustment:
2"
Subcategory:
Power hammers

Description

Model: MH-19 Power Hammer
Speed: 0 - 1500 beats / minute
Mild Steel Capacity: 16 gauge
Tooling Height Adjustment: 2"
Throat Depth: 19"
Capacity (Mild Steel): 16 gauge
Aluminum Capacity: 12 gauge
Length Of Stroke Adj: .177" - .550"
Power: 220V / 1-phase
Shipping Weight: 1,600 lbs.
Shipping Dimensions: 60" x 60" x 84"
DESCRIPTION:
If you are into metal forming and shaping there is currently
only one machine that you should have in your shop. That
machine is the MH-19 power hammer from Baileigh Industrial.
The MH-19 is truly a do it all machine. The MH in MH-19
stands for multi-hammer because if does multiple things, but
unlike other combination machines that you see, the MH-19
does them all well. There truly is nothing that this
achine can't do. The MH-19 power hammer is a 220 volt
single phase machine has the ability to transform itself
from a rigid style like a Pullmaxr style machine, to a
spring slapping style like a Yoderr style machine, or even a
very heavy duty English wheel.
When operating in the rigid mode, there is no "give" between
the die heads. Used for short stroke shaping, flanging.
Tooling designs and profiles are endless, but some of the
options are mechanical shrinking, stretching dies, flanging
dies, and louvers.
The spring setup with "Throw the die" causing a dead blow
hammering effect. When in this mode the total amount of
pressure applied when the dies hit the metal is increase
exponentially. This mode would be used for aggressive
shrinking and planishing, many different tooling profiles
can be used.
An optional English wheel kit can be purchased for the MH-19
power hammer to even bring more versatility in the machine.
The quality of the English wheel kit is second to none and
is very rigid, which is important when finishing metal.
The MH-19 uses an inverter to obtain various speeds for
operation. Speeds range from 0 to 1500 beats per minute,
speed is adjusted one of two ways; either with the operator
controlled foot pedal or on the operator panel where he/she
can lock in their speed. Another key feature of the MH-19
power hammer is "on the fly" stroke adjustments. These
stroke adjustments range from 0175" to .550".
Other things that are included are, quick release adjustment
handles, quick change tooling system, tooling racks, one set
of thumbnail shrink dies, one flat top, and one lower
planishing die.
MADE IN THE U.S.A.!!
