Top Seller

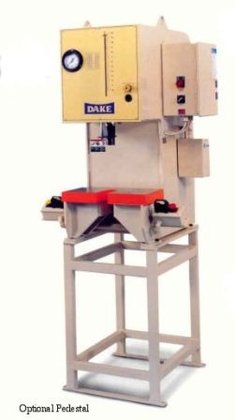

DAKE 28-612 12 Ton, C-FRAME
Location:
McClellan Park, CA
Manufacturer:
Dake presses
Model:
28-612
Capacity:
12-Ton

Specifications

Condition:
new
Stock number:
2918
Rpm:
1800
Throat:
10-1/2"
Capacity:
12-Ton
Dimensions:
25"L-R X 48"F-B X 59"H
Horsepower:
5 HP
Ram travel:
12"
Table size:
23" X 19"
Table to base:
12"
Approx. weight:
2460 lbs
Table slot width:
7"
Max. ram to table:
14-1/2"
Ram speed, inches per minute:
511 Advance, 62 Press, 474
Subcategory:
C-frame

Description

Model: #28612 (12-Ton)
Capacity: 12-Ton
Horsepower: 5 HP
RPM: 1800
Ram Speed, Inches Per Minute: 511 Advance, 62 Press, 474
Return
Throat: 10-1/2"
Table Slot Width: 7"
RAM Travel: 12"
Max. Ram to Table: 14-1/2"
Table to Base: 12"
Table Size: 23" X 19"
Dimensions: 25"L-R X 48"F-B X 59"H
Approx. Weight: 2460 lbs.
HIGH SPEED, LOW COST, AND READY FOR ANY PRESS WORK YOU CAN
THINK OF!!
FEATURES:
* Adjustable return stroke, activated by proximity switch,
permits accurate control of Ram movement.
* Remote pressure adjustment easily sets maximum pressure
desired.
* Light-sensitive thumb pads must be engaged simultaneously
before Ram will move and cannot be mechanically by-passed.
* Run-job selector allows fast, easy job set-up.
* Hydraulic cylinders are manufactured to withstand 3000
PSI, but are used at less than 2000 PSI to prolong service
life.
STANDARD EQUIPMENT:
* For each press ordered, user must select the Bolster, Nose
piece, and desired Voltage that meets your needs.
BOLSTERS can easily be removed and replaced for different
jobs.
* Select one for your press order. Additional bolsters
available as optional eq.
1)Plain Bolster 2)Bolster with u-slot or 3)Bolster
with bored hole
* NOSE PIECES available - Select one:
1)Threaded nose piece or 2)Flanged nose piece
* VOLTAGES available, all three phase - Select one:
1)208 Volt 2)230 Volt 3)460 Volt 4)575 Volt
OPTIONAL EQUIPMENT:
* Pedestals
* Air/Oil heat exchanger
* Pressure reversal control
* Distance reversal control
* Variable speed control
* External dwell timer
* Piece/cycle counter
