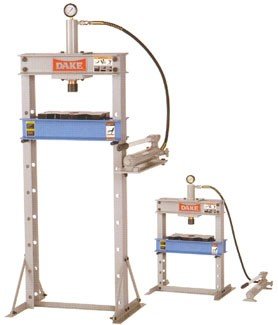

DAKE UTILITY H-FRAME PRESS 10
Location:
McClellan Park, CA
Manufacturer:
Dake presses
Model:
UTILITY H-FRAME PRESS

Specifications

Condition:
new
Stock number:
4337
Code:
72200
Style:
Manual H-Frame
Weight:
165 lbs
Tonnage:
10
Dimensions:
23" L-R X 18"F-B X 36"H
Ram travel:
6"
Maximum ram to table:
16"
Minimum ram to table:
4"
Width between uprights:
16-3/4"
Width between table channels:
3"
Subcategory:
Hydraulic

Description

Model: B-10 (Bench Mounted)
Code#: 72200
Tonnage: 10
Style: Manual H-Frame
Width Between Uprights: 16-3/4"
Width Between Table Channels: 3"
Minimum Ram to Table: 4"
Maximum Ram to Table: 16"
Ram Travel: 6"
Dimensions: 23" L-R X 18"F-B X 36"H
Weight: 165 lbs.
The power of hydraulic pressure in a compact design!
FEATURES:
* FAST, EFFICIENT single speed hand pump with adjustable
mounting for maximum ergonomic operation.
* LARGE DIAMETER, single acting polished piston with
internal spring return to eliminate external pinch points.
* CONVENIENT TOP MOUNTED GAUGE reads in tons and psi to
monitor pressure.
* THE HYDRAULIC PRESSURE CYLINDER can be relocated right or
left of center for unusual work pieces.
* TABLE CAN BE ADJUSTED for max or min vertical opening to
accomodate a variety of work pieces and to minimize required
ram travel.
STANDARD EQUIPMENT:
* Frame
* Combination table plates and v-blocks
* Flat ram nose
* Step reduced ram nose
