Top Seller

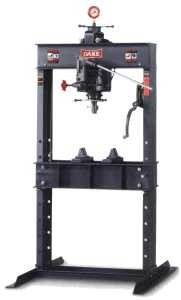

DAKE 75H 75 Ton, HAND-OP
Location:
McClellan Park, CA
Manufacturer:
Dake presses
Model:
Dake 75H
Capacity:
75-Tons

Specifications

Condition:
new
Stock number:
2801
Capacity:
75-Tons
Ram travel:
4-1/2"
Overall dims:
55"L X 36"W X 87"H
Screw travel:
7"
Approx. weight:
1245 lbs
Maximum ram to table:
36"
Minimum ram to table:
6"
Width between uprights:
44"
Horizontal workhead travel:
29-5/8"
Width between table channels:
8-1/4"
Subcategory:
Hydraulic

Description

Model: 75H
Capacity: 75-Tons
Width Between Uprights: 44"
Width Between Table Channels: 8-1/4"
Minimum RAM to Table: 6"
Maximum RAM to Table: 36"
RAM Travel: 4-1/2"
Horizontal Workhead Travel: 29-5/8"
Screw Travel: 7"
Overall DIMS: 55"L X 36"W X 87"H
Approx. Weight: 1245 lbs.
FEATURES:
* Hand operation for economical performance
* Rapid RAM return starts as soon as release valve is opened
and may be stopped at any point by closing the valve
* Adjustable table permits easy vertical movement by means
of self-locking hoist
* Rapid screw traverse of RAM permits quick, easy movement
of the RAM by means of a convenient handwheel
* Movable workhead is roller mounted on ball bearings for
off-center positioning
* By-pass hole prevents excessive RAM extension
STANDARD EQUIPMENT:
* Frame
* Workhead
* Two Forged Steel V-Blocks
* Two Forged STeel Table Plates
* Flat RAM Nose
* V-RAM Nose
* Pressure Gauge
* Selt-locking Table Hoist
DAKE'S MOST POPULAR SELLING PRESS!
