- Stock number:
- 25 Tons
- 110 Volt, Single Phase
- 30"L X 38"W X 88"H
- 1 HP
- Approx. weight:
- 570 lbs
- E - ram travel:
- C - min ram to table:
- D - max ram to table:
- Rams speed press (ipm):
- A - width between uprights:
- B - width between table channels:
- Presses in United States

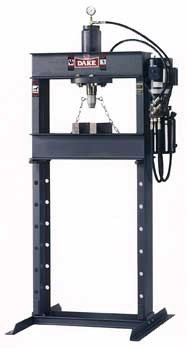

Model: Force 25DA
Capacity: 25 Tons
A - Width Between Uprights: 28"
B - Width Between Table Channels: 7"
C - Min RAM to Table: 8"
D - Max RAM to Table: 44"
E - RAM Travel: 10"
Horsepower: 1 HP
Electrics: 110 Volt, Single Phase
RAMS Speed Press (IPM): 10
Dimensions: 30"L X 38"W X 88"H
Approx. Weight: 570 lbs.
Designed to work the way you work.
These Single Phase Dura Presses feature an electric power
unit, lever control ram advance, a double acting cylinder,
and one hand ram positioning.
* Electric power unit has convenient single phase, 110 volt
operation for greater portability.
* Sturdy, welded channel iron frame for durability.
* Lever control ram advance for easy operation.
* Quiet, low pressure hydraulic components for greater
efficiency and smooth pressing.
* Double acting cylinder allows for convenient positioning
* One hand ram positioning with 4-way valve hydraulic
