AZIMUTH OBI SINGLE-CRANK PUNCH PRESS
Location:
McClellan Park, CA
Manufacturer:
AZIMUTH
Model:
OBI SINGLE-CRANK PUNCH PRESS
Capacity:
10 Ton

Specifications

Condition:
new
Stock number:
6205
Capacity:
10 Ton
Standard:
1-3/4" stroke
Stokes per minute:
155
Ac13 fault message for:
Brake Fault, Brake WArning, Low
Shut height over bolster:
6-3/4"
Distance from bed to gibs:
9-3/4"
Punch shank hole diameter:
1-1/2"
Throat depth - ram center to frame:
5-1/2"

Description

Model: 10-IP
Capacity: 10 Ton
Shut Height over bolster: 6-3/4"
Max Shut Height Adjustment 2"
Standard: 1-3/4" stroke
Stokes per minute: 155
Punch Shank Hole Diameter: 1-1/2"
Throat Depth - Ram Center to Frame: 5-1/2"
Distance from Bed to Gibs: 9-3/4"
Bolster Plate 14"L-R x 9"F-B X 1-1/4"Thick
Press Dimensions:
32" Floor to Bed - Height
54-3/4" Floor to Center of Crankshaft - Height
67" Overall Height
Approx Weight - not including all options: 1200 lbs.
FEATURES:
* Air Clutch & Brake
* Control w/2Hand Anti Tie Down
* Single, Inch or Auto Cycle
* Hand Operated
* Forward, Reverse Starter
* Resolver Pulser Combination
* Herion Dual Valve W/Low Pressure Cut out Switch
* Quick Exhaust, FRL
* Dual Digital Counter
* Rockford Control
* Brake Monitor Time Base
* AC13 Fault Message for: Brake Fault, Brake WArning, Low
oil, Air Clutch Fault
* Automatic Central Lubrication
* Motor 2 HP, 900 RPM, 230, 460 or 575 Volt
MACHINE DETAILS:
FRAME:
* Frames are designed and tested to withstand 150% of rated
capacity without permanent deformation.
* Frame deflection is guaranteed not to exceed .0015" per
inch of throat depth at rated tonnage.
SLIDE & GIB CONSTRUCTION:
* Slide and gibs are hand scraped to ensure precise fit and
long life.
* Sliding surfaces are 25% longer than average for presses
of similar capacity
STANDARD COMPONENTS & FEATURES:
* Replaceable bronze main bearings
* Ground bolster plate
* Roller bearing mounted flywheel
* Inclining mechanism
* Lubrication via individual oil cups
* Adjustable ram guides
* Heavy duty crankshaft
* Replaceable ball seat and slide
* One year limited warranty
OPTIONAL FEATURES:
* Light Curtain w/horizontal barriers
* Custom bolster & slide machining and T-slotting
* Automatic or manual lubrication systems
* Quick die change equipment
* Variable speed drive
* Special Stroke length
* Variety of clutch controls
* Infrared light curtain guards
* Air counterbalance
* Bronze gib liners

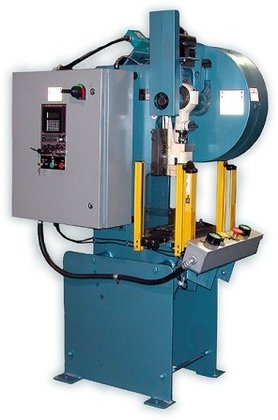

Photo of machine shown with Light Curtain & Control
(optional)
