Top Seller

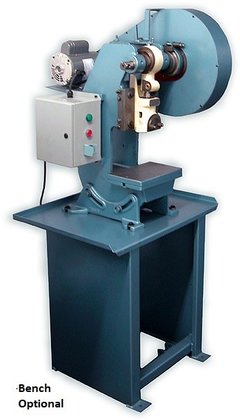

AZIMUTH 6-IP 6 Ton, MECHANICAL
Location:
McClellan Park, CA
Manufacturer:
AZIMUTH
Model:
6-IP
Stroke:
1-1/4"

Specifications

Condition:
new
Stock number:
7698
Motor:
1/2 HP, 1800 RPM, 115 VOLT
Stroke:
1-1/4"
Weight:
320 lbs
Tonnage:
6-ton
Shank size:
1-1/2"
Grounded bolster plate:
11" x 7" x 7/8"
Shut height over bolster:
5-3/4"

Description

Model: #6-IP
Tonnage: 6-ton
Flywheel Type
Full Revolution Clutch
Stroke: 1-1/4"
Shank Size: 1-1/2"
Shut Height over bolster: 5-3/4"
Grounded Bolster Plate: 11" x 7" x 7/8"
Motor: 1/2 HP, 1800 RPM, 115 VOLT
Weight: 320 lbs.
FEATURES:
* Magnetic Starter
* Air Activated Comes With Control
With choice of ether (2) Hand Anti Tie Down or Foot Switch
* Manual 1-Shot Grease
* (3) Sides of Polycarbonate die area guard with
interlock switch - customer to cut to accomodate
their loading / unloading of part within
Osha regulation.
* It is the end-user responsibility to see to operate
safety while working.
* Meets CSA code
* Ross Dual valve w/lower pressure cut out switch
OPTIONS:
Bench $325
Short Stroke (less than 1-1/4") $170
Longer Stroke (more than 1-1/4") $210
Additional 3" Shut Height $225
Bijur greasing system $750.00
