VICON TDX-II 12 STND, TDX
Location:
McClellan Park, CA
Manufacturer:
Vicon
Model:
TDX-II
Capacity:
18 to 26 Gauge Material and no adjustments

Specifications

Condition:
new
Stock number:
7436
Motor:
5 HP
Capacity:
18 to 26 Gauge Material and no adjustments
# of stations:
12
Forming speed:
50 Feet Per Minute
Subcategory:
Rollformers

Description

Model: TDX-II
# Of Stations: 12
Capacity: 18 to 26 Gauge Material and no adjustments
are necessary between gauges!!
Motor: 5 HP
Forming Speed: 50 Feet Per Minute

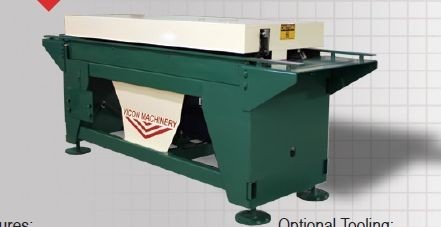

The Vicon TDX II Rollformer will produce SMACNA's T25a
connections. Material is formed to produce a SMACNA approved
transverse flange connection.
FEATURES:
* Twelve forming stations for superior quality
* Inboard and one outboard roll space available
* 5 HP motor coupled to an industrial oil bath gear
reducer for quiet longevity
* Independent adjustment at each forming station with pre
set spring tension
* Heavy duty roller chain drive (no belts)
* Heavy duty 1 1/4" diameter stress proof roller shafts
* Large heavy duty bearings with inner races to protect
roll shafts and extend the life of the machine
* Material capacity of 18 to 26 gauge with no adjustments
necessary between gauges
* 6" minimum part length with the use of the included
small parts feeder
* Hardened infeed guides reducing wear from plasma cut
edges
* Forming speed 50 feet per minute
INBOARD OPTIONAL ROLL SETS:
TDX Clip (12 stations) $ 5,390.00
1 1/8" 20 Gauge Standard Standing "S" $10,540.00
OUTBOARD OPTIONAL ROLLSETS:
TDX Clip (12 Stations) $5,390.00
1-5/8" 16 Gauge 2-in-1 Standing Seam (12-Sta) $5,225.00
1-1/8" 18 Gauge 3-in-1 Tap-in-Law, Standing Seam
and Right Angle Flange (10-sta) $5,255.00
2" x 2" Angle $5,225.00
(Available Inboard for Additional $1,000.00 price add)
16 Gauge Pittsburgh (8 Stations) $3,960.00
VICON MACHINES ARE 100% MADE IN THE USA!
